1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter

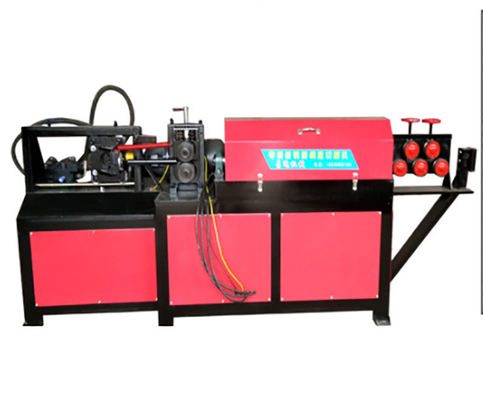

Large Image : 1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM/ODM
Certification:	CE,ROHS ,ISO9001,ISO14001,
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	wooden packing
Delivery Time:	20-25days
Payment Terms:	L/C, T/T
Supply Ability:	1-3 sets per month

Contact Now

1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter

Description

Name:	1kw Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine	Type:	Straightener
Voltage:	380V 50Hz	Power(W):	1120
Tube Material:	Copper / Aluminum / Bundy Tube	Dimension(LWH):	2200 X 580 X 1000 Mm
Weight:	500kgs	Application:	Aluminium, Stainless Steel And Bonded Tubes
Highlight:	Copper Pipe Straightener Cutter , 16mm cnc plasma pipe cutter , 16mm cnc plasma tube cutting machine

1kw Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine

Specification

Parameters
Product brand	OEM/ODM
Product model	AD-6-16
Product voltage	380V
Product power	7.5KW
Straightening range	6-16mm
Straightening machine	5.5KW copper wire motor
Straightening speed	20m/min
Cut off range	6-16mm
Cut off the motor	2.2KW copper wire motor
Number of feed ports	6
The length of the shortest	300mm
Total Weight	800KG
Dimensions	2200 x 580 x 1000 mm

Production Description

Copper aluminum bundy tube straightener and cutting machine is special designed for copper and aluminum tube process, which is mainly used for tube blanking before tube bending or welding process of condenser and evaporator.

Compare to normal design with two-half clamping die, we design the clamping die in three parts according to lathe chuck structure, which can minimize the tube distortion during cutting, and the clamping die changing / adjustment will be more easier.

Detailed image

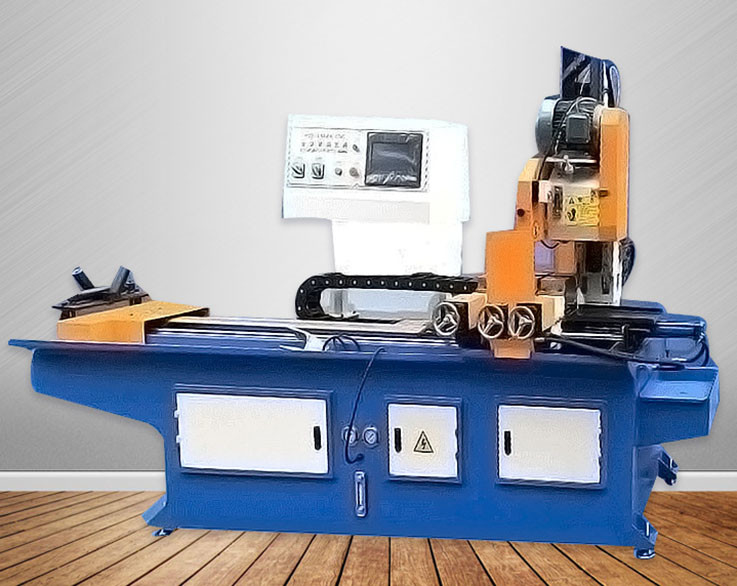

1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter 0

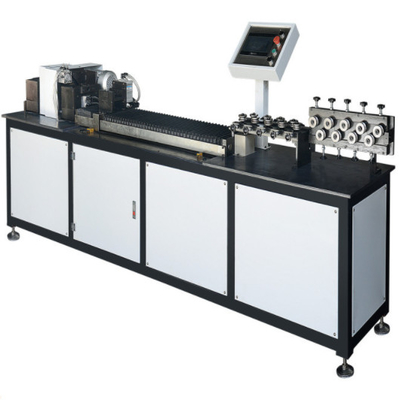

1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter 1

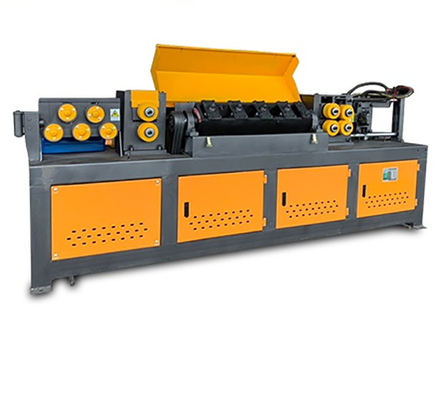

1kw Copper Pipe Straightener Cutter, 16mm CNC Plasma Pipe Cutter 2

Main Features

◆ Three-part clamping die to minimize tube distortion, get smooth cutting end surface.
◆ High accuracy concentricity ensures to get good welding quality in following process.
◆ Chipless cutting with 360° rotary cutting and stretching with two points clamping.
◆ Straightening wheel Nylon and “U” shape rubber belt to avoid scratch on tube surface

Supply Ability

Supply Ability:20 Set/Sets per Month Automatic coil steel bundy aluminum copper tube pipe

Packaging & Delivery

Packaging Details:Coil steel bundy aluminum copper tube pipe cut to length machine with chipless clean cutting is packaged within wooden case.

Port:Coil steel bundy aluminum copper tube pipe cut to length machine with chipless clean cutting is delivered Shanghai

Lead Time : 30 days
