Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine

Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine
Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine

Large Image :  Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001,ISO14001,
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 20-25days
Payment Terms: L/C, T/T
Supply Ability: 1-3 sets per month
Contact Now

Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine

Description
Name: Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine Type: Straightener & Cutter
Voltage: 380V 50Hz Weight: 500kgs
Power(W): 1120 Tube Material: Copper / Aluminum / Bundy Tube
Dimension(L*W*H): 2000 X 600 X 1100 Mm Application: Aluminium, Stainless Steel And Bonded Tubes
Highlight:

bundy tube straightener

,

wire straightener and cutter

Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine

Specification



Parameters
Product brand OEM/ODM
Product model AD-6-16
Product voltage 380V
Product power 7.5KW
Straightening range 6-16mm
Straightening machine 5.5KW copper wire motor
Straightening speed 20m/min
Cut off range 6-16mm
Cut off the motor 2.2KW copper wire motor
Number of feed ports 6
The length of the shortest 300mm
Total Weight 800KG
Dimensions 1300*1000*1100CM

Production Description

Copper aluminum bundy tube straightener and cutting machine is special designed for copper and aluminum tube process, which is mainly used for tube blanking before tube bending or welding process of condenser and evaporator.

Compare to normal design with two-half clamping die, we design the clamping die in three parts according to lathe chuck structure, which can minimize the tube distortion during cutting, and the clamping die changing / adjustment will be more easier.

Detailed image

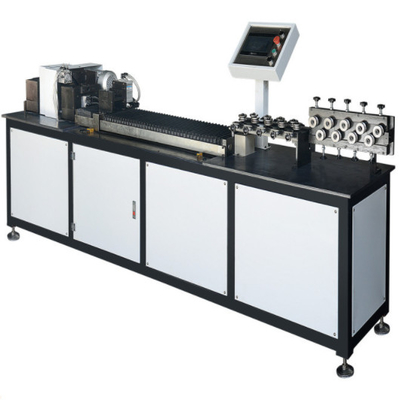

Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine 0

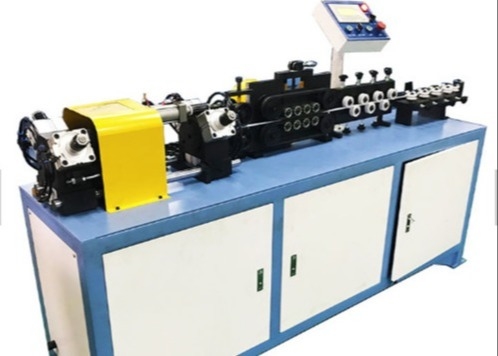

Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine 1

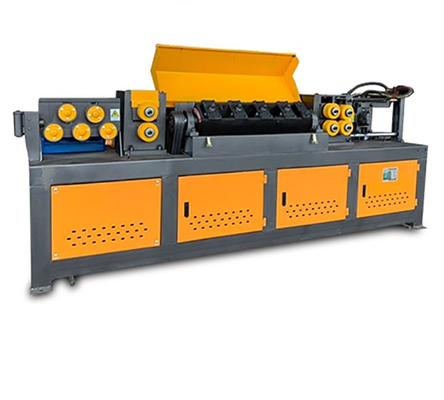

Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine 2

Main Features

◆ Three-part clamping die to minimize tube distortion, get smooth cutting end surface.
◆ High accuracy concentricity ensures to get good welding quality in following process.
◆ Chipless cutting with 360° rotary cutting and stretching with two points clamping.
◆ Straightening wheel Nylon and “U” shape rubber belt to avoid scratch on tube surface



Supply Ability

Supply Ability:20 Set/Sets per Month Automatic coil steel bundy aluminum copper tube pipe

Packaging & Delivery

Packaging Details:Coil steel bundy aluminum copper tube pipe cut to length machine with chipless clean cutting is packaged within wooden case.
Port:Coil steel bundy aluminum copper tube pipe cut to length machine with chipless clean cutting is delivered Shanghai
Lead Time : 30 days

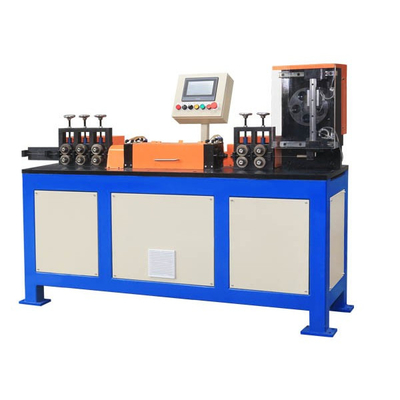

Aluminum / Copper Pipe Straightener Cutter, CNC Flame Plasma Cutting Machine 3

Tag:

bundy tube straightener,

straightening and cutting machine,

wire straightener and cutter
