Product Details:
|
| Name: | CSA Pressure Vessel Tube Welded Plate Heat Exchanger SMO254 | Type: | Heat Exchanger Plate,Plate |
|---|---|---|---|
| Material: | SUS304/316L | Voltage: | AC110V/AC220~24V/AC380V/DC12V/DC24V |
| Core Components: | Pressure Vessel | Weight: | 150kg Or Customized |
| Cooling Capacity: | 1.125kw | Application: | Cooling |
| High Light: | tube Plate Heat Exchanger,Pressure vessel Plate Heat Exchanger,CSA welded plate heat exchanger |
||
Specification
| Product Name | CSA Pressure Vessel Tube Welded Plate Heat Exchanger SMO254 |
| Material | Titanium tubes + PVC shell + copper connectors |
| Heat exchanger type | Corrosion protection type |
| Cooling capacity | 1.125 KW, 1.5 ton, 1.5 HP |
| Connection | water Inlet and outlet - 32mm quick connector; Air inlet and outlet - copper connection |
| Systems | Single systems (double or multi-system are available) |
| Size | φ160mm,length 425mm or customization |
| Function | Heating transfer; evaporating; cooling; chilling |
| Application case | Titanium tube heat exchangers can be widely used for temperature control in swimming pools, aquariums, aquariums, sea water baths, plating tanks, marine heating and cooling systems of chemical equipment. It can also be used in anti-corrosion areas such as seawater utilization and surface treatment industries. In addition, the titanium tube heat exchanger is also used in food, distilled water, pure water, brewing, beer, beverage, soilless cultivation, pharmaceutical, cosmetics and other industries. It can also be used in the field of environmental protection, such as waste gas condensation recovery, pollutant (solvent) recovery and so on. |
| Package | Export packaging |
Usage & Applications

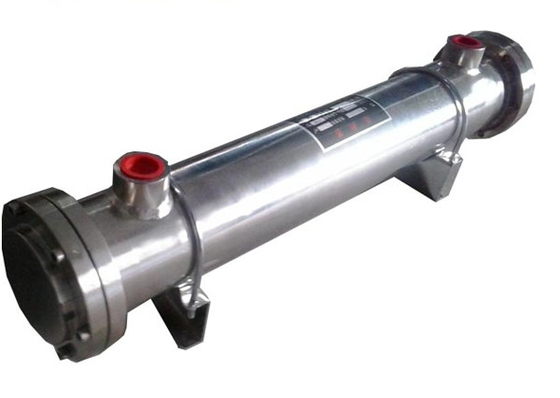

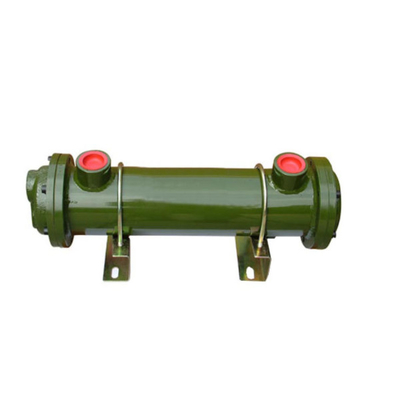

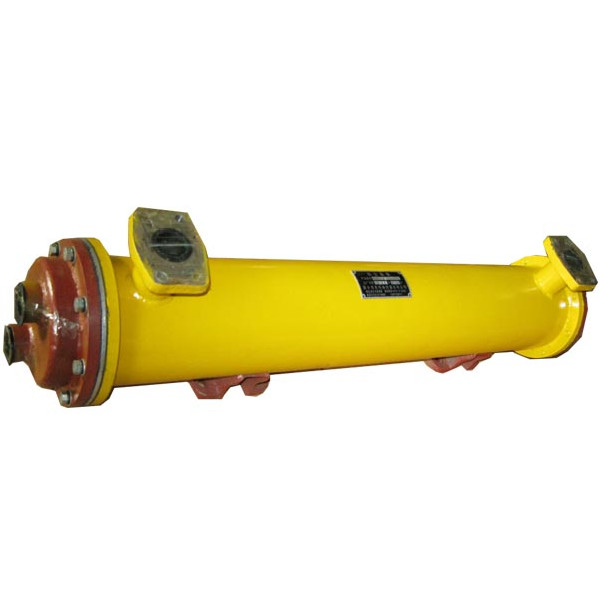

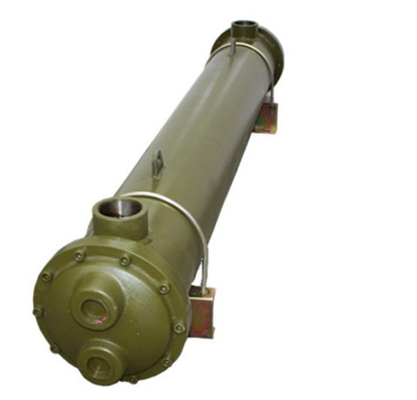

The shell and tube exchanger is a kind of heat exchanger that widely applied for chemical and alcohol production. It is mainly composed of the shell, tube sheet, heat exchanging tube, sealing head, baffle plate, ect. It can be made of stainless steel, duplex stainless steel ,Titanium (Ti), carbon steel... During the heat exchanger, a king of fluid enters from the tube connection of the sealing head, flows in the tube and exits from the other tube connection of the shell and exits from the other tube connection of the shell, which is called shell pass.
Shell and tube heat exchanger belongs to petrochemical equipment, is composed of a tube box, a shell and a tube bundle, and so on. The U shaped tube heat exchanger has only one tube plate, and both ends of the pipe are fixed on the same pipe plate. In addition, in order to make up for the reduction of the pipe wall of the elbow, the straight pipe part of the wall thickness of the pipe. This affected the use of the occasion, it is only suitable for pipe shell wall temperature difference is larger, or the shell side of the medium is easy to scale and the pipe is clean and not easy to scale, high temperature, high pressure, corrosion of the situation.
