Product Details:
|
| Name: | Stainless Steel CNC Single Head 40mm Metal Tube Bending Machine | Type: | Automatic Bending Machine |
|---|---|---|---|
| Power: | 5.5kw | Material / Metal Processed: | Stainless Steel,Carbon Steel,Brass / Copper,Aluminum |
| Color: | Yellow Or Support Customized | Extra Services: | Piercing & Punching |
| Bending Capacity: | Single Tube | Application: | Hydraulic Muffler Pipe Bender |
| High Light: | Single head Tube Bending Machine,Single head 40mm tube bender,40mm metal tube bender |
||

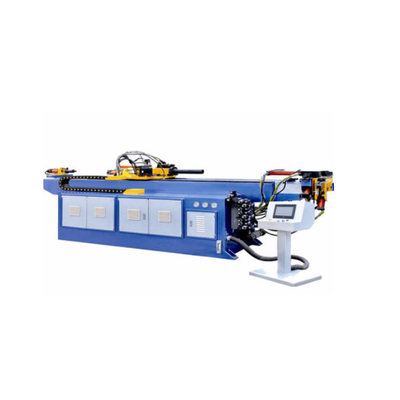

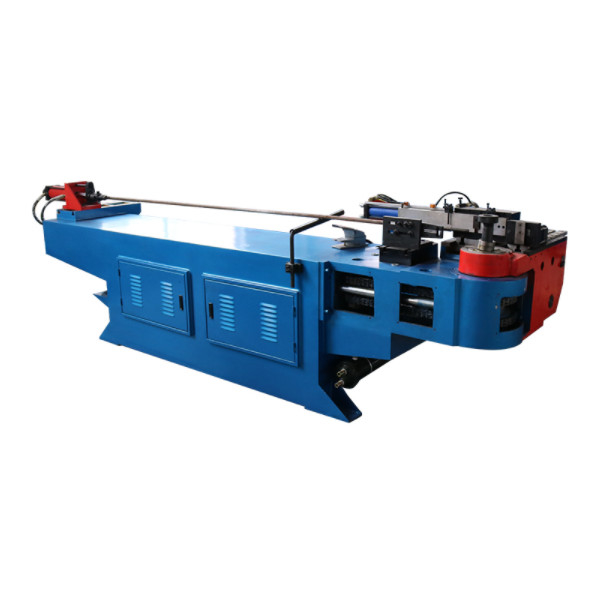

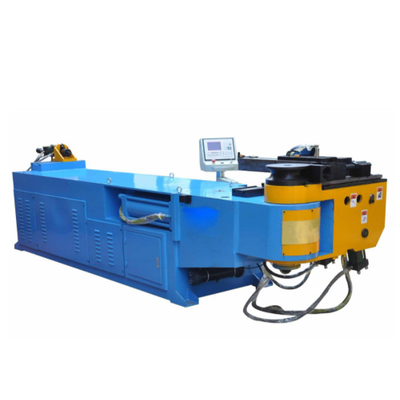

Stainless Steel CNC Single Head 40mm Metal Tube Bending Machine
Specification
| 1 | Tube Material | Copper tube / Aluminum tube /Bundy tube |
| 2 | Tube Diameter | Φ3-12mm |
| 3 | Tube Wall Thickness | 0.3-1.0mm |
| 4 | Bending Capacity | Single tube |
| 5 | Bending Angle | 1~180 degree |
| 6 | Bending Radius | R11~R30 |
| 7 | Bending Times | Up to 110 times/cycle |
| 8 | Feeding length | 0-700mm/time, max. 3 times |
| 9 | Rotary Table Size | Φ2000mm |
| 10 | Control System | PLC control / Touch Screen |
| 11 | Air Pressure | 0.5-0.6MPa |
| 12 | Motor Power | 13KW |
| 13 | Electric System | 380V, 50Hz, 3Phae (Customized) |
| 14 | Dimension | 4800 x 1300 x 1680 mm (Excluded Table) |
| 15 | Weight | About 3000 KG |
Changzhou Aidear Refrigeration Technology Co.,ltd.Based on Honesty,Responsible,Technology and continuous Innovation.We are professional refrigeration system solutions provider. Main products are tube&fin heat exchangers,Microchannel heat exchanger,air cooler,condenser and units,raw materials and the components for heat exchangers,automatic machines for heat exchangers,and the complete solutions for customer. Welcome to contact us if you are intrested to our products or any question.
Application
1. Exhaust pipe of car, motorcycle, airplane and other machinery.
2. Tubes of air conditioning, furnitures, bikes, outside street light, sports facilities
3. Pipes of kitchen and bathing facilities, pipes of medical equipments.
4. Metal sheets of interior finishing, constructing facilities, outside protective equipments.
| Quantity(Sets) | 1 - 2 | >2 |
| Est. Time(days) | 15 | To be negotiated |
