11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator

11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator
11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator 11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator 11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator 11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator

Large Image :  11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden case or customized made
Delivery Time: 20-25days
Payment Terms: L/C, T/T
Supply Ability: 1 sets per days

11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator

Description
Name: 11kw Automatic Tube Bending Machine Type: Pipe And Tube Bending Machine
Extra Services: Piercing & Punching Max Bending Angle: 190 Degree
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support Material / Metal Processed: Stainless Steel,Carbon Steel,Brass / Copper,Aluminum
Voltage: 220V/380V/415V/440V/customized Application: Hydraulic Muffler Pipe Bender
High Light:

serpentine tube benders

,

automatic bending machine

11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator

Specification



   1 Tube Material Copper tube / Aluminum tube /Bundy tube
   2 Tube Diameter Φ3-12mm
   3 Tube Wall Thickness 0.3-1.0mm
   4 Bending Capacity Single tube
   5 Bending Angle 1~180 degree
   6 Bending Radius R11~R30
   7 Bending Times Up to 110 times/cycle
   8 Feeding length 0-700mm/time, max. 3 times
   9 Rotary Table Size Φ2000mm
  10 Control System PLC control / Touch Screen
  11 Air Pressure 0.5-0.6MPa
  12 Motor Power 13KW
  13 Electric System 380V, 50Hz, 3Phae (Customized)
  14 Dimension 4800 x 1300 x 1680 mm (Excluded Table)
  15 Weight About 3000 KG

Product Description

The full automatic serpentine bender is used to process single aluminum/ copper / Bundy tube with de-coiling, straightening and cutting machine and bending function in one line automatically. Compare to traditional manual process, the full-automatic machine improve the work efficient and save labor cost greatly.

Detailed image

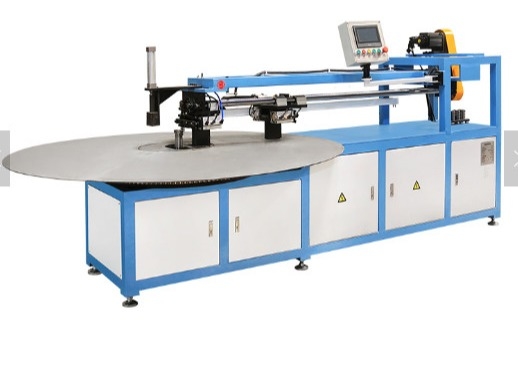

11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator 0

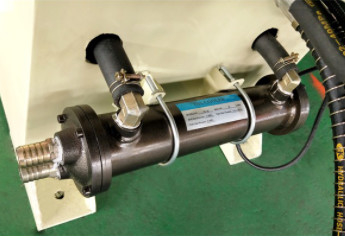

11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator 1

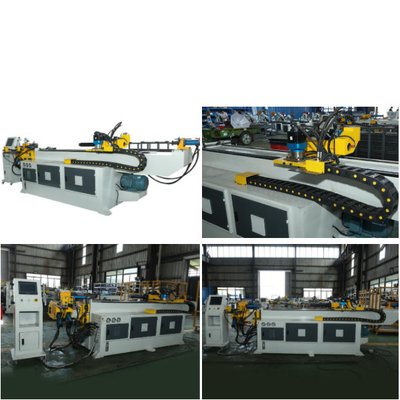

11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator 2



Structural features


1, bending machine using touch screen plus CNC module, dialogue operation, easy to set the program;.

2, the bed structure is solid, not easy to deformation.

3, each file can set 16 bending angle, the memory can be stored in 16 groups of files.

4, all slow positioning function, bending angle stability, repeat accuracy of ± 0.1 °.

5, the error message is displayed on the screen to help the operator immediately to eliminate.

6, to provide self-developed coordinates to convert the bend processing values, software can be installed in the desktop computer optional editing calculations.
