Product Details:
|
| Name: | 2 Coils Copper Tube Straightening Cutting Machine CNC Hydraulic | Type: | Straightener & Cutter |
|---|---|---|---|
| Material: | Stainless Steel,304 Stainless Steel And Carbon Steel | Power: | 1500w |
| Key Selling Points: | Easy To Operate | Weight: | 1200kg |
| Wire Diameter: | 0.45-2.6mm | After Warranty Service: | Online Support |
| High Light: | 2 coils Straightening Cutting Machine,copper tube Straightening Cutting Machine,2 coils wire straightening machine |
||
Specification
| Parameters | |
| Product brand | OEM/ODM |
| Product model | AD-6-16 |
| Product voltage | 380V |
| Product power | 7.5KW |
| Straightening range | 6-16mm |
| Straightening machine | 5.5KW copper wire motor |
| Straightening speed | 20m/min |
| Cut off range | 6-16mm |
| Cut off the motor | 2.2KW copper wire motor |
| Number of feed ports | 6 |
| The length of the shortest | 300mm |
| Total Weight | 800KG |
| Dimensions | 1300*1000*1100CM |
Production information
Steel Wire straightening and cutting machine
Steel wire straightening and cutting machine is a kind of steel bar processing equipment, which is mainly used for straightening and cutting all kinds of steel bar materials, such as ordinary carbon steel, hot-rolled round steel, rebar, cold-rolled steel bar and so on. steel wire straightening and cutting machine
Straightening and cutting machine can be widely used in bridge, pile foundation, building construction, standardized construction, steel bar processing factory and other industries.

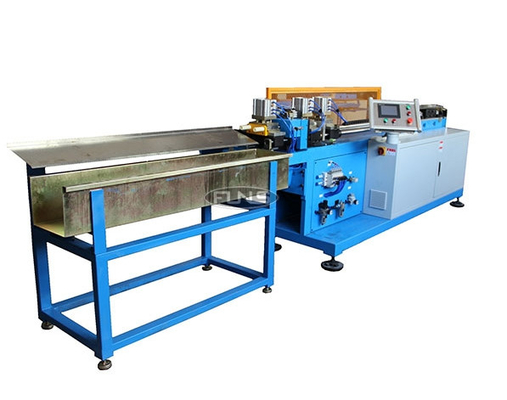

Detailed image
Features
1.Servo CNC, accurate locating, stable feeding.
2.High degree of automation, convenient adjustment.
3.With snapping function, little shrinking of pipe end.
