Auto Feeding Tube Shrinking Machine , Automatic Shrinking Machine Auto Discharging

Auto Feeding Tube Shrinking Machine , Automatic Shrinking Machine Auto Discharging
Auto Feeding Tube Shrinking Machine , Automatic Shrinking Machine Auto Discharging Auto Feeding Tube Shrinking Machine , Automatic Shrinking Machine Auto Discharging

Large Image :  Auto Feeding Tube Shrinking Machine , Automatic Shrinking Machine Auto Discharging

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001,ISO14001,
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard export wooden packing
Delivery Time: 20-25days
Payment Terms: L/C, T/T
Supply Ability: 1 sets per month

Auto Feeding Tube Shrinking Machine , Automatic Shrinking Machine Auto Discharging

Description
Control:: PLC Control With Touch Screen Cooling:: Auto Water Or Fan
After-sales Service Provided:: Engineers Available To Service Machinery Overseas Supply Ability:: 50 Set/Sets Per Month
Place Of Origin:: Jiangsu, China Type:: Hydraulic
Condition: New Head:: Single Head
High Light:

pipe reducer machine

,

tube reducing machine

Tube shrinking machine with PLC control, auto feeding, auto shrinking and auto discharging



Description

Automatic Shrinking machine is specially used to narrow the diameter of copper, aluminum or steel pipe in order to make good connection during condenser and evaporator manufacturing. It is with PLC control, auto feeding, auto shrinking and auto discharging, easy operation, high efficiency.
Main specification

1) PLC Control Unit: Easy Operation and Maintenance

2) Suitable for the shrinking of various metal pipes with different material and different shape

3) Equipped with emergency stop device. Both manual and automatic operations are available

4) Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length

5) This machine can make pipe end reducer, expander, flange and flare depend on different forming molds

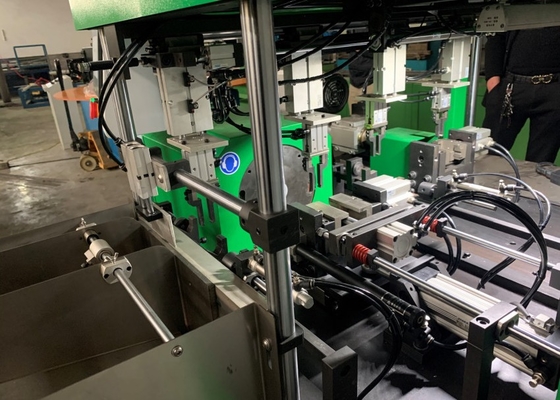

Auto Feeding Tube Shrinking Machine , Automatic Shrinking Machine Auto Discharging 0

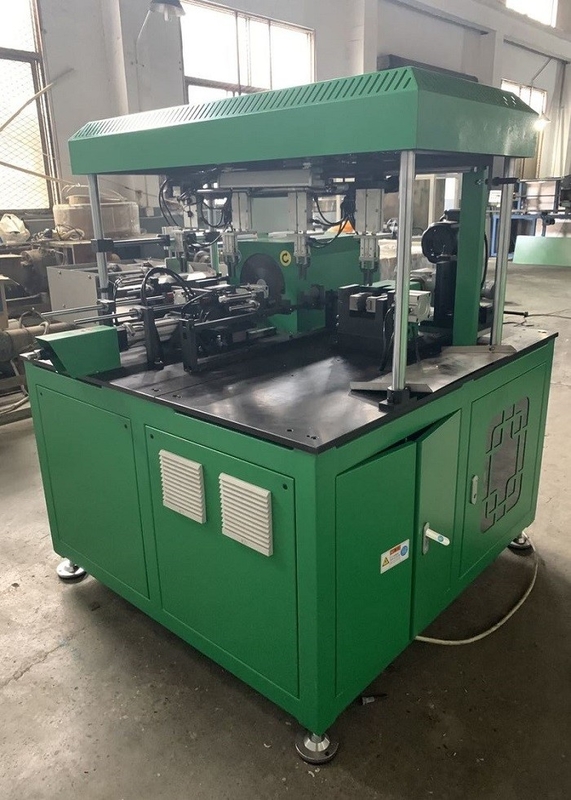

Auto Feeding Tube Shrinking Machine , Automatic Shrinking Machine Auto Discharging 1





Technical parameter



Type idea-40 idea-60 idea-80 idea-100
Max tube(mm) φ40*2.0 φ60*2.0 φ80*3.0 φ100*3.5
Max processing length(mm) 110 130 150 180
Oil pressure(Mpa) 14 14 14 14
Working speed 100mm in3-4/s 100mm in3-4/s 100mm in3-4/s 100mm in3-4/s
Size(cm) 180*45*120 200*50*130 290*70*140 300*75*150
Weight(kg) 600 950 1600 1800
Remark 1.The max processing length can according to customers requirement.

Application

Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. Microcomputer controller with English or any other language

Packaging & Delivery

Packing :Standard exporting polywood box

Port:Shanghai, China

Lead Time :10 days
Auto Feeding Tube Shrinking Machine , Automatic Shrinking Machine Auto Discharging 2
