Auto Tube Reducer Machine Multipurpose For Copper / Aluminum / Bundy Tube

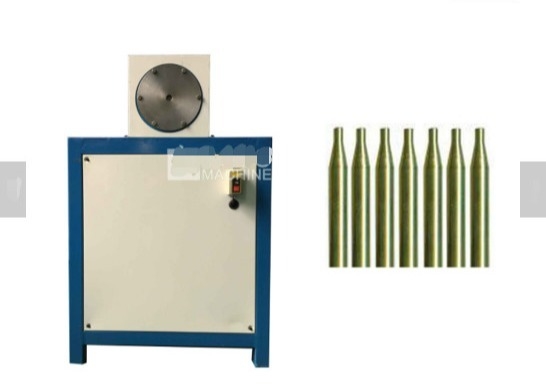

Large Image : Auto Tube Reducer Machine Multipurpose For Copper / Aluminum / Bundy Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM/ODM
Certification:	CE,ROHS ,ISO9001,ISO14001,
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	standard export wooden packing
Delivery Time:	20-25days
Payment Terms:	L/C, T/T
Supply Ability:	1 sets per month

Contact Now

Auto Tube Reducer Machine Multipurpose For Copper / Aluminum / Bundy Tube

Description

Control::	PLC Control With Touch Screen	After-sales Service Provided::	Engineers Available To Service Machinery Overseas
Supply Ability::	50 Set/Sets Per Month	Place Of Origin::	Jiangsu, China
Condition:	New	Tube Diameter:	4-20mm
Tube Material:	Copper / Aluminum / Bundy Tube
Highlight:	pipe reducer machine , pipe shrinking machine

Tube auto shrinking machine Tube Material : Copper / Aluminum / Bundy tube

Technical parameter

	Parameter	Data
1	Tube Material	Copper / Aluminum / Bundy tube
2	Tube Diameter	4-20mm
3	Shrinking Length	5-50mm (Customized)
4	Work Speed	10-15 pcs/min
5	Inner Diameter range	Φ1.9-Φ10.0±0.05mm
6	Tube Feeding	Manual
7	Motor Power	1.1 KW
8	Electric System	380V, 50Hz, 3Phae (Customized)
9	Dimension	700 x 500 x 1100 mm
10	Weight	250 KG

Description

Automatic Shrinking machine is specially used to narrow the diameter of copper, aluminum or steel pipe in order to make good connection during condenser and evaporator manufacturing. It is with PLC control, auto feeding, auto shrinking and auto discharging, easy operation, high efficiency.

Main Feature

1, Forming by rotary swaging process for welding process in next step.
2, Four-die design for less noise and better quality product
3, Special designed forming die ensure welding quality with less waste in next step..
4, Casted forming head housing ensure stable performance and long-life use.
5, Core-bar design to ensure the inner diameter during process.

Auto Tube Reducer Machine Multipurpose For Copper / Aluminum / Bundy Tube 0

Packaging & Delivery

Packing :Standard exporting polywood box

Port:Shanghai, China

Lead Time :10 days
