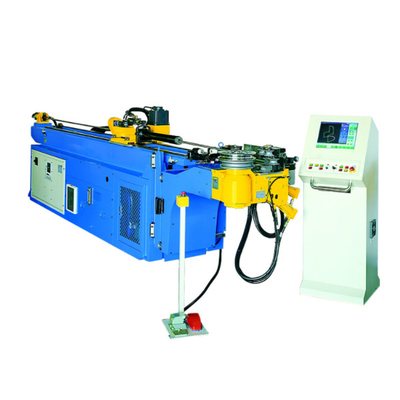

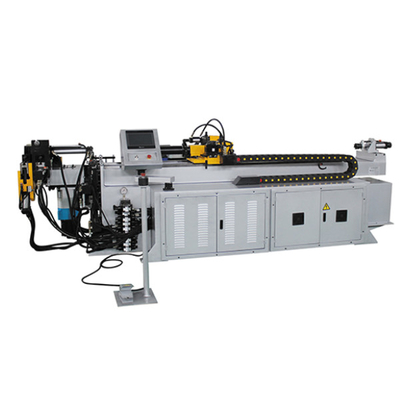

Product Details:
|
| Name: | Mutifunctional Automatic Tube Bender W 220-600 Bending Dimension Customized | Type: | Automatic Bending Machine |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support | Material / Metal Processed: | Stainless Steel,Carbon Steel,Brass / Copper,Aluminum |
| Color: | Blue Or Support Customized | Machine Type: | Pipe And Tube Bending Machine |
| Weight: | 80kgs | Application: | Hydraulic Muffler Pipe Bender |
| Highlight: | serpentine tube benders,pipe bending machine |
||
| Max.bending pipe diameter | 75*4mm |
| Max bending radius | R250mm |
| Max feed length | 3000mm |
| Max bending angle | 190° |
| Standard core length | 1600mm |
| Bending speed | Max40/S |
| Bending method | 1.Servo bending:7kw(three or more axes)2.Hydraulic bends |
| Rotor tube servo motor power | 1KW |
| Feeding servo motor power | 1.5KW |
| Permissible number of elbows in pipe fittings | 1.16pcs(PLCtype)2.33pcs(Industrial computer type) |
| Number of stored parts | 1.1000 million groups(PLC type) 2.200 million groups(Industrial computer type) |
| Hydraulic motor power | 7.5KW |
| Machine dimensions | 5200mm*1350mm*1230mm |
| Machine weight | 4500kgs |
Ø platform
Ø bending part
Ø body frame
Ø PLC control panel
Ø Electric case
Ø others

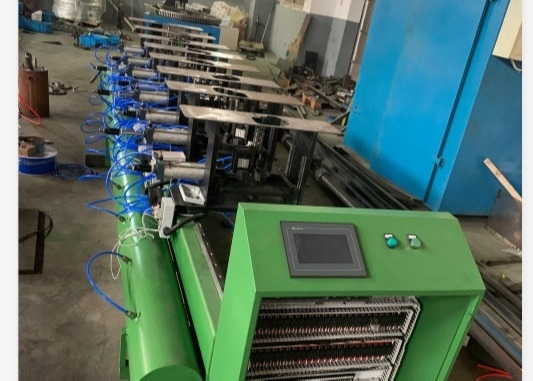

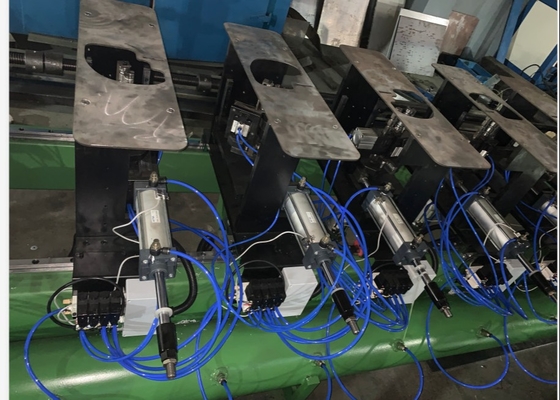

| No. | item | specific/Brand | Remark |
| 1 | Quantity of bender | Maximum 20 benders | depend on the requires |
| 2 | R of bending | R15 | If different pls advice |
| 3 | Tube diameter | φ8.5mm after expanding | Aluminum tube A1070/1060 O |
| 4 | Bending dimension | W 220～600 | depend on the requires |
| 5 | Productivity | 1000pcs/shift/8h/operator | based on 10 benders |
| 6 | PLC | Delta | Can be defined |
| 7 | Body frame | Steel, painted | Color: green, similar as the photo |
| 8 | Air pressure | Min 6 bar(≥0.6MPa) | |
| 9 | Power rating | 2 KW | |
| 10 | voltage | 380V, 50HZ | according to local voltage |
Supply Ability
| Quantity(Sets) | 1 - 2 | >2 |
| Est. Time(days) | 15 | To be negotiated |
