Product Details:
|
| Name: | Automatic Swaging Tube Shrinking Machine , PLC Control Tube Reducer Machine | Type: | Hydraulic |
|---|---|---|---|
| Control: | PLC Control With Touch Screen | Cooling: | Auto Water Or Fan |
| After-sales Service Provided:: | Engineers Available To Service Machinery Overseas | Supply Ability: | 50 Set/Sets Per Month |
| Place Of Origin: | Jiangsu, China | Application: | Copper And Aluminium Tube Pier Processing |
| High Light: | pipe reducer machine,tube reducing machine |
||

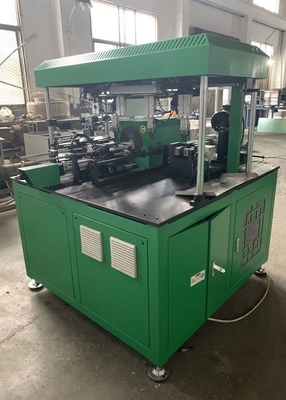

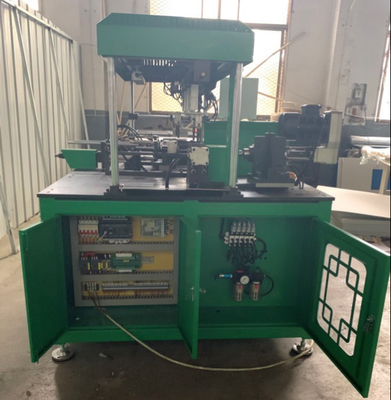

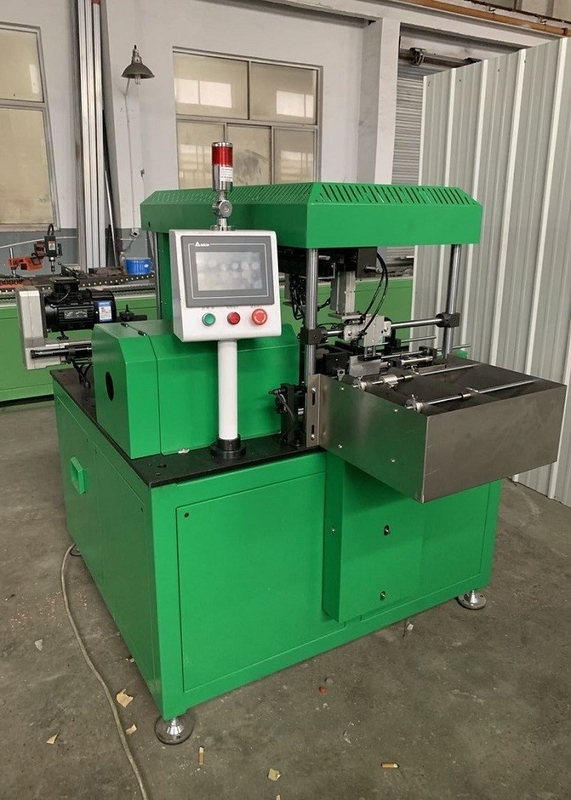

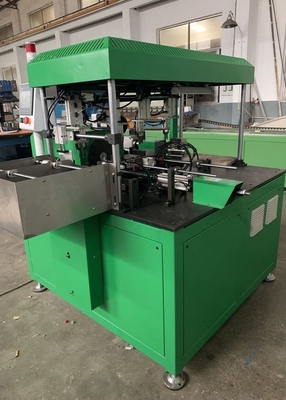

Idea-60 Single head square tube swaging machine/tube shrinking machine/tube end expansion machine
Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. Microcomputer controller with English or any other language
1) PLC Control Unit: Easy Operation and Maintenance
2) Suitable for the shrinking of various metal pipes with different material and different shape
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length
5) This machine can make pipe end reducer, expander, flange and flare depend on different forming molds
Technical parameter
| Type | idea-40 | idea-60 | idea-80 | idea-100 |
| Max tube(mm) | φ40*2.0 | φ60*2.0 | φ80*3.0 | φ100*3.5 |
| Max processing length(mm) | 110 | 130 | 150 | 180 |
| Oil pressure(Mpa) | 14 | 14 | 14 | 14 |
| Working speed | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s |
| Size(cm) | 180*45*120 | 200*50*130 | 290*70*140 | 300*75*150 |
| Weight(kg) | 600 | 950 | 1600 | 1800 |
| Remark | 1.The max processing length can according to customers requirement. | |||
