Copper Tube Shrinking Machine flange and flare depend on different forming molds

Large Image : Copper Tube Shrinking Machine flange and flare depend on different forming molds

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM/ODM
Certification:	CE,ROHS ,ISO9001,ISO14001,
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	USD999-9999 per set
Packaging Details:	standard export wooden packing
Delivery Time:	20-25days
Payment Terms:	L/C, T/T
Supply Ability:	1 sets per month

Contact Now

Copper Tube Shrinking Machine flange and flare depend on different forming molds

Description

Name:

Copper Tube Shrinking Machine Flange And Flare Depend On Different Forming Molds

Type:

Automatic Machine

Warranty:

5-10years

High Light:

pipe shrinking machine

tube reducing machine

Specification

Type	idea-40	idea-60	idea-80	idea-100
Max tube(mm)	φ40*2.0	φ60*2.0	φ80*3.0	φ100*3.5
Max processing length(mm)	110	130	150	180
Oil pressure(Mpa)	14	14	14	14
Working speed	100mm in3-4/s	100mm in3-4/s	100mm in3-4/s	100mm in3-4/s
Size(cm)	18045120	20050130	29070140	30075150
Weight(kg)	600	950	1600	1800
Remark	1.The max processing length can according to customers requirement.

Overview

Place of Origin:Jiangsu, China

Model Number:idea-60 square tube swaging machine

Head:Single head

Type:Hydraulic

Control:PLC control with touch screen

Station:One

Cooling:Auto water or fan

square tube swaging machine:square tube swaging machine

After-sales Service Provided:Engineers available to service machinery overseas

Supply Ability:50 Set/Sets per Month square tube swaging machine

Idea-60 Single head square tube swaging machine/tube shrinking machine/tube end expansion machine

Application

Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. Microcomputer controller with English or any other language

Main specification

1) PLC Control Unit: Easy Operation and Maintenance

2) Suitable for the shrinking of various metal pipes with different material and different shape

3) Equipped with emergency stop device. Both manual and automatic operations are available

4) Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length

5) This machine can make pipe end reducer, expander, flange and flare depend on different forming molds

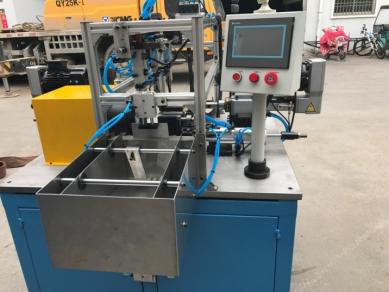

Copper Tube Shrinking Machine flange and flare depend on different forming molds 0

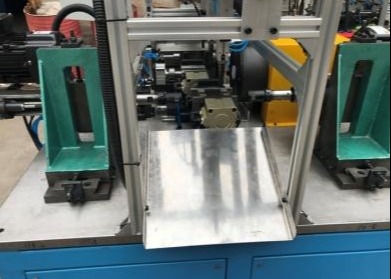

Copper Tube Shrinking Machine flange and flare depend on different forming molds 1

Packaging & Delivery

Packing :Standard exporting polywood box

Port:Shanghai, China

Lead Time :10 days
