Product Details:
|
| Name: | Stainless 304 Brazed Plate Heat Exchanger , Welded Plate And Frame Heat Exchanger | Type: | Brazed Plate Heat Exchanger,gasket Plate Exchanger |
|---|---|---|---|
| Plate Material: | Stainless Steel 304 Or 316 | Shell Material: | Copper/Nickel |
| Color: | Silver,Yellow,Brown | Weight: | 60kgs |
| Heat Transer: | Interwall Heating | Application: | Heating，Refrigeration |
| High Light: | brazed heat exchanger,plate frame heat exchanger |
||
Stainless 304 Brazed Plate Heat Exchanger , Welded Plate And Frame Heat Exchanger
|
model |
W (mm) |
H (mm) |
L (mm) |
LP (mm) |
TP (mm) |
Plate (m2/pc) |
Plates (Nmax) |
Total (m2) |
Volume(L) Single side |
Flow rate (m3/h) |
|
B3-014 |
78 |
208 |
9+2.2n |
40 |
170 |
0.014 |
60 |
0.014*(N-2) |
0.01*(N-2) |
6 |
|
B3-015 |
88 |
198 |
9+2.2n |
46 |
160 |
0.015 |
80 |
0.015*(N-2) |
0.01*(N-2) |
6 |
|
B3-020 |
78 |
317 |
9+2.2n |
42 |
280 |
0.020 |
80 |
0.02*(N-2) |
0.018*(N-2) |
6 |
|
B3-026 |
109 |
309 |
9+2.5n |
50 |
250 |
0.026 |
120 |
0.026*(N-2) |
0.025*(N-2) |
18 |
|
B3-038 |
109 |
419 |
10+1.68n |
50 |
360 |
0.038 |
120 |
0.038*(N-2) |
0.026*(N-2) |
18 |
|
B3-050 |
109 |
525 |
10+2.4n |
50 |
466 |
0.05 |
120 |
0.05*(N-2) |
0.047*(N-2) |
18 |
|
B3-050S |
112 |
526 |
9+2.23n |
50 |
466 |
0.05 |
120 |
0.05*(N-2) |
0.048*(N-2) |
18 |
|
B3-095 |
191 |
616 |
11+2.8n |
92 |
519 |
0.095 |
150 |
0.095*(N-2) |
0.125*(N-2) |
45 |
|
B3-095S |
197 |
622 |
9+2.43n |
92 |
519 |
0.095 |
280 |
0.095*(N-2) |
0.10*(N-2) |
45 |
|
B3-120DS |
251 |
491 |
10+2.13n |
155/166 |
400/369 |
0.120 |
280 |
0.12*(N-2) |
0.10*(N-2) |
60 |
|
B3-190 |
307 |
696 |
11+2.6n |
179 |
567 |
0.190 |
320 |
0.19*(N-2) |
0.217*(N-2) |
140 |
|
B3-300 |
366 |
1006 |
16+2.8n |
228.5 |
872 |
0.300 |
320 |
0.30*(N-2) |
0.35*(N-2) |
160 |
Product Features
Retains the heat transfer characteristics of a detachable heat exchanger
Low fouling factor
Safe operation
Long service life

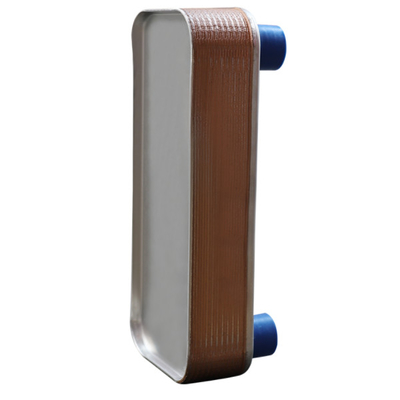

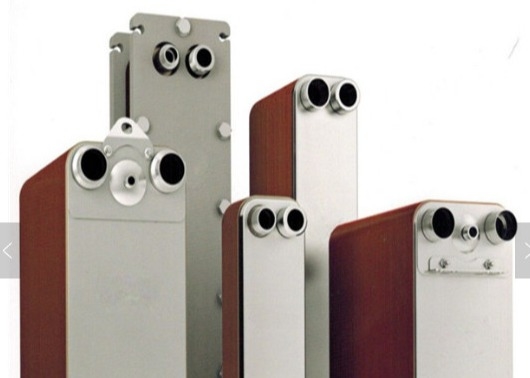

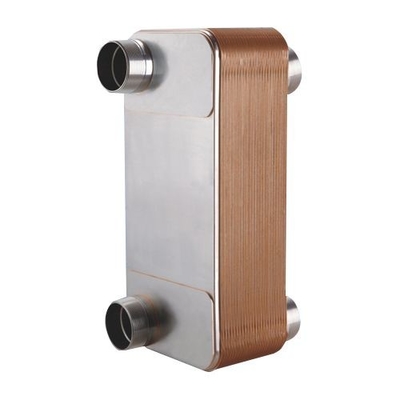

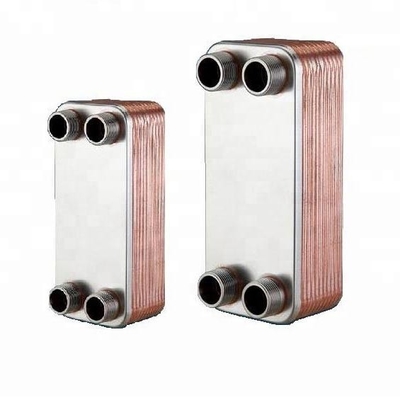

Detailed image
