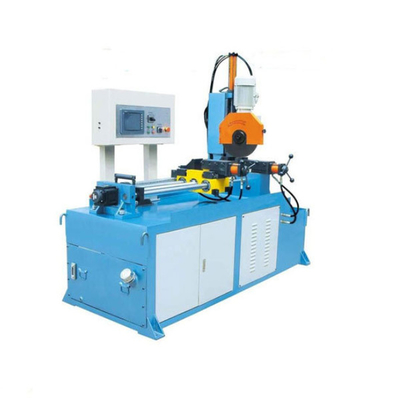

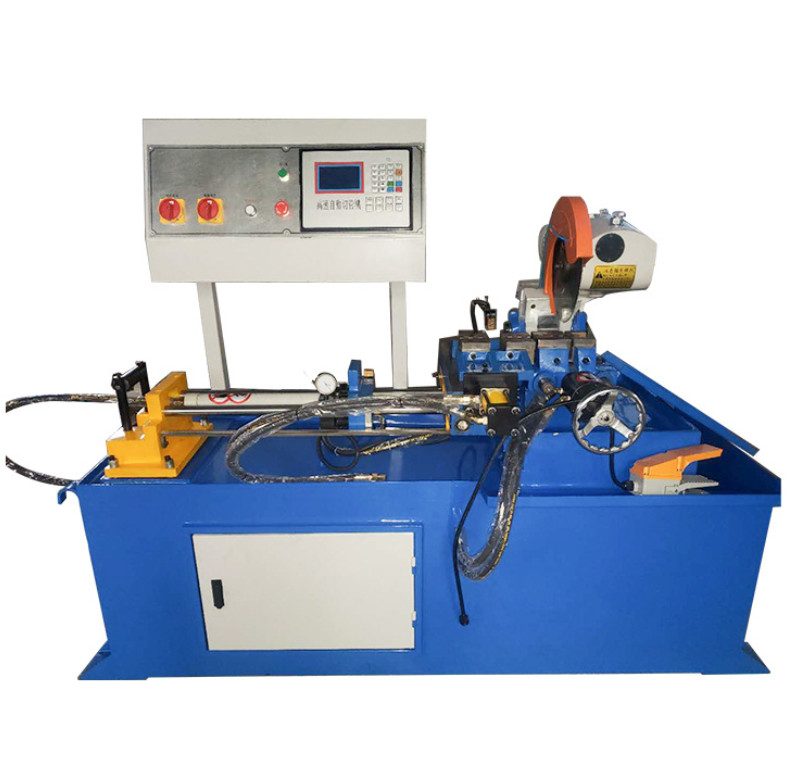

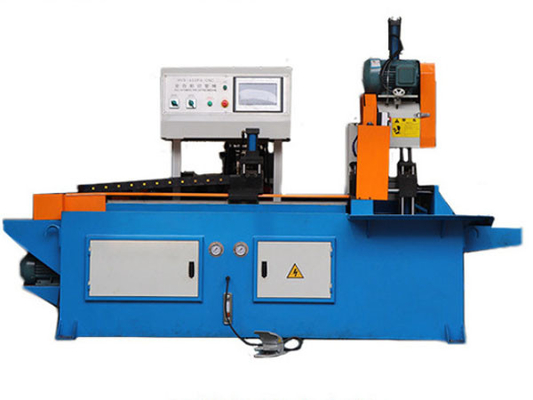

PLC Programmable Control SUS304 Cnc Pipe Cutter 2.0mm Wall Thickness

PLC Programmable Control SUS304 Cnc Pipe Cutter 2.0mm Wall Thickness
large.img.alt
PLC Programmable Control SUS304 Cnc Pipe Cutter 2.0mm Wall Thickness PLC Programmable Control SUS304 Cnc Pipe Cutter 2.0mm Wall Thickness PLC Programmable Control SUS304 Cnc Pipe Cutter 2.0mm Wall Thickness PLC Programmable Control SUS304 Cnc Pipe Cutter 2.0mm Wall Thickness PLC Programmable Control SUS304 Cnc Pipe Cutter 2.0mm Wall Thickness

Large Image :  PLC Programmable Control SUS304 Cnc Pipe Cutter 2.0mm Wall Thickness

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001,ISO14001,
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden box/case
Delivery Time: 20-25days
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month

PLC Programmable Control SUS304 Cnc Pipe Cutter 2.0mm Wall Thickness

Description
Name: PLC Programmable Control CNC Pipe Cutting Machine Full Automatic Type: Extrusion Production Line
Voltage: 380V Core Components: PLC, Motor, Pump
Servo Motor Power: 1000W Material: Stainless Steel 304
Processing Type: Pipe Extrusion Application: Manufacturing Plant
High Light:

PLC Programmable cnc pipe cutter

,

2.0mm cnc pipe cutter

,

SUS304 cnc tube cutter

PLC Programmable Control CNC Pipe Cutting Machine Full Automatic


Technology table



Model Horizontal axles(mm) Vertical axles(mm) Diameter range(mm) Thickness(mm)

Main motor

power

Size of machine

(L*W)(M)

AD-30 30 25 ¢6-¢25 0.2-0.8 4KW+4KW 19.5*1.0
AD-S40 40 25 ¢6-¢32 0.2-1.0 5.5KW+4KW 20*1.0
AD-40 40 25 ¢9-¢51 0.2-1.5 7.5KW+5.5KW 21.5*1.1
AD-L40 40 25 ¢12-¢64 0.3-2.0 11KW+7.5KW 21.5*1.1
AD-50 50 30 ¢25-¢76 0.3-2.0 11KW+11KW 24*1.2
AD-60 60 40 ¢38-¢114 0.4-2.5 15KW+15KW 26*1.4
AD-80 80 50 ¢76-¢168 1.0-3.5 18.5KW+15KW 32*2.3
AD-100 100 60 ¢114-¢219 1.0-4.0 22KW 23*1.2

Main components of the production: uncoiler,forming and welding unit,grinding unit,sizing unit,straightening racks,

cut off machine,end- product shelf




PLC Programmable Control SUS304 Cnc Pipe Cutter 2.0mm Wall Thickness 0

PLC Programmable Control SUS304 Cnc Pipe Cutter 2.0mm Wall Thickness 0

PLC Programmable Control SUS304 Cnc Pipe Cutter 2.0mm Wall Thickness 2

Features



1.Good energy saving effect. Using the tool to rotate, the pipe does not move, saving the power needed to rotate the pipe.

2.High efficiency and low running cost. Adopting the cutting method of simultaneous processing with multiple knives, the processing efficiency is high and the consumption of knives is low.

3.High machining accuracy and low noise.

4.High reliability, good accuracy maintenance and easy maintenance.

5.Control system based on industrial Ethernet motion control platform, high degree of automation, strong control function, fully realize the  production automation of steel pipe cutting processing.

6.The main use of automatic pipe cutting machine suitable for oil casing, welded pipe, high-pressure boiler pipe, pipe line pipe, light casing and other high-efficiency, precision cutting processing, can meet the oil, metallurgy, bearing and other industries in mass production occasions. At the same time, it can reduce power consumption and save steel.



Application




Widely used in sheet metal processing, advertising signage word making, high and low voltage electrical cabinet making, mechanical parts, kitchenware, automotive, machinery, metal crafts, saw blades, electrical parts, eyeglass industry, spring pieces, circuit boards, electric kettles, medical microelectronics, hardware, knife and measuring tools and other industries.
