Product Details:
|
| Name: | 40g Copper Filter Drier Heat Exchanger Components For Commercial | Material: | Copper |
|---|---|---|---|
| Refrigerant: | R404a, R134a | MOQ: | 1000PCS |
| Diameter: | 16/19mm | Weight: | 40g |

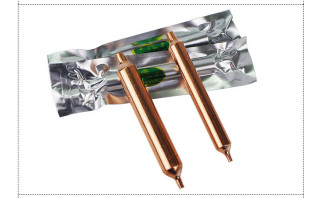

| Packing: | Aluminum Foil Bag | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops |
| High Light: | 19mm copper filter drier,40g copper filter drier,R134a heat exchanger filter drier |
||
Specification
| Mlecular sieves +5%, -0% | Body diameter (mm) | Thickness (mm) | Overall length (mm) | Strainer deepness (mm) |
| 5g | 16 | 0.37 | 80 | ≥19 |
| 7g | 16 | 0.37 | 90 | ≥19 |
| 10g | 16 | 0.37 | 115 | ≥19 |
| 10g | 19 | 0.37 | 100 | ≥19 |
| 12g | 19 | 0.37 | 105 | ≥19 |
| 13g | 19 | 0.37 | 110 | ≥19 |
| 15g | 19 | 0.37 | 115 | ≥19 |
| 18g | 19 | 0.37 | 128 | ≥19 |
| 20g | 19 | 0.37 | 141 | ≥19 |
| 20g | 25 | 0.45 | 120 | ≥19 |
| 25g | 25 | 0.45 | 125 | ≥19 |
| 30g | 25 | 0.45 | 140 | ≥19 |
| 35g | 25 | 0.45 | 155 | ≥19 |
| 40g | 25 | 0.45 | 170 | ≥19 |
| 50g | 29 | 0.5 | 160 | ≥19 |
Detailed image

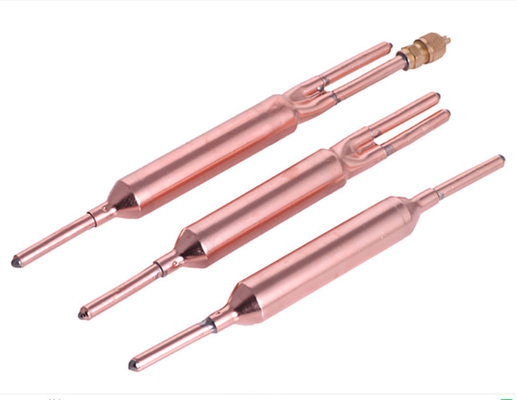

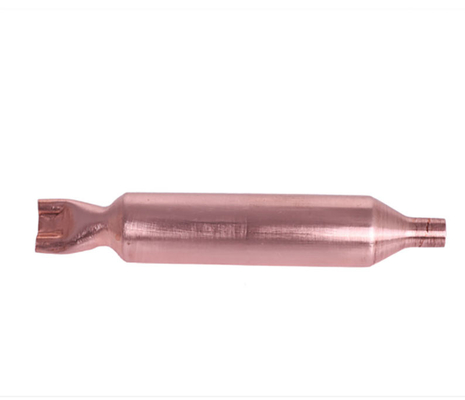

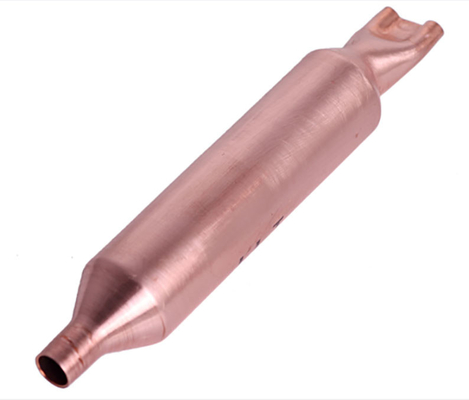

Filter driers weled with copper tube or flare nuts at both ends
1) Refrigeration fitting of copper material
2) Used for refrigerator, freezer, air-conditioner
3) Include all series copper fittings, dry filters for refrigerator, filters
mufflers, valves, tee pipes and so on
4) We can produce according to the customer's working drawing and sample
