Product Details:
|
| Name: | Hydrophilic Coating Fin Type Heat Exchanger For Refrigeration Equipment | Type: | Fin Tube,Heat Exchanger Tube |
|---|---|---|---|
| Voltage: | 50/60HZ,220V/380V | Tube Material: | Copper |
| Fin Space: | 1.3-8 Mm | Certification: | CE,ISO9001,Supplier Assessment Certificate,RoHS,ISO |
| Fin Spacing: | 1.5mm | Application: | Machinery & Hardware |
| High Light: | oxygen generator Fin Type Heat Exchanger,ISO14001Fin Type Heat Exchanger,oxygen generator finned tube exchanger |
||
| Product name | Hydrophilic coating Fin Type Heat Exchanger for Refrigeration Equipment |
| Application | showcase,water cooler,cold storage,outdoor wood furnace and other refrigeration equipment |
| Power | 1/5HP, 1/4HP, 1/3HP, 3/8HP, 1/2HP, 3/4HP, 1HP, 1.5HP, 2HP,3HP, 4HP…20HP |
| Materials | Copper tube aluminum fin, galvanized plate |
| Tube O.D. | 7mm. 7.94mm, 9.52mm, 12.75mm, 15.88mm |
| Aluminum fin | Hydroponic fin or bare fin,Copper fin |
| Fin type | Flat fin, Window fin, louver fin, Smooth sine wave fin |
| Fin space | 1.3-10mm |
| Fan Cover | With cover or without cover,with fan motor or without fan motor |
| Application refrigerant | R417A/R407C/R404A//R410A/R134A, ect. |

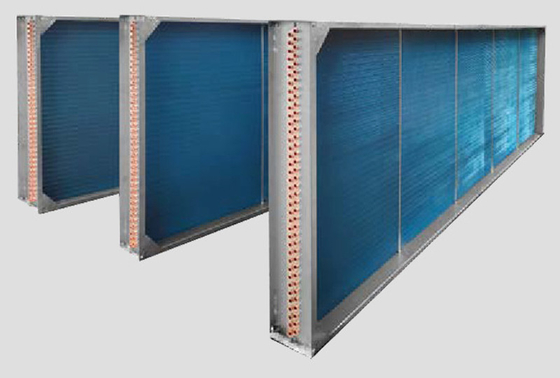

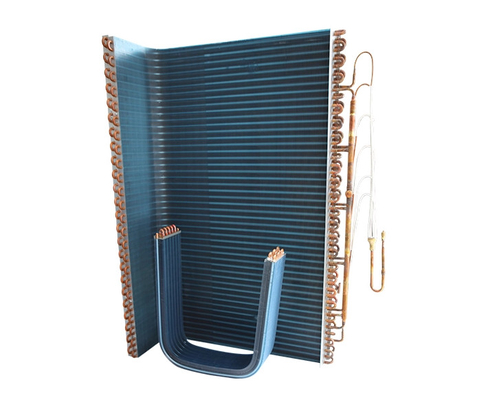

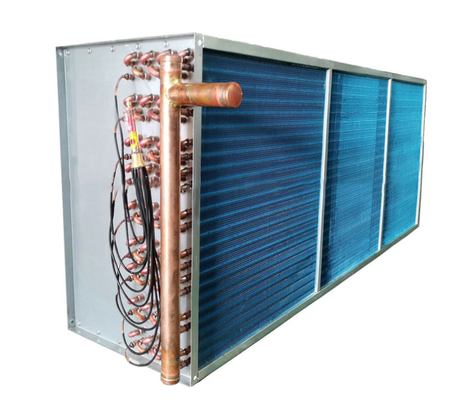

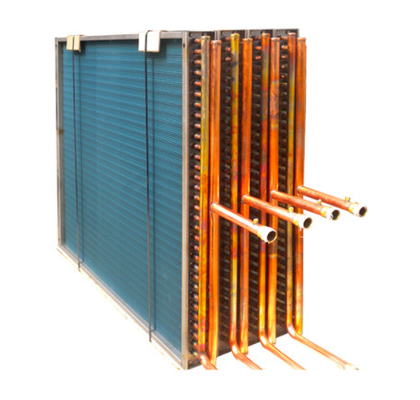

Detailed image
Application
Finned tube heat exchanger is applied and equipped with fins on one side to increase the heat transfer area,
improve the degree of turbulence in the fluid and the convection heat transfer coefficient when two fluid convection heat transfer coefficient has large difference.
