Product Details:
|
| Name: | R410A SS304 Window Fin Type Heat Exchanger Electrophoresis | Tube Material: | Copper |
|---|---|---|---|
| Fin Material: | Copper /SS/Al | Type: | Fin Tube,Heat Exchanger Tube,Heating Tube,ammonia Evaporator Unit Refrigeration |
| Fin Pitch: | 1.1mm-3mm | Voltage: | 50/60HZ,220V/380V |
| Fin Shape: | Surface | Application: | Machinery & Hardware |
| High Light: | SS304 Fin Type Heat Exchanger,R410A Fin Type Heat Exchanger,CE plate fin type heat exchanger |
||
| Product name | R410A SS304 Window Fin Type Heat Exchanger Electrophoresis |
| Application | showcase,water cooler,cold storage,outdoor wood furnace and other refrigeration euqipment |
| Power | 1/5HP, 1/4HP, 1/3HP, 3/8HP, 1/2HP, 3/4HP, 1HP, 1.5HP, 2HP,3HP, 4HP…20HP |
| Materials | Copper tube aluminum fin, galvanized plate |
| Tube O.D. | 7mm. 7.94mm, 9.52mm, 12.75mm, 15.88mm |
| Aluminum fin | Hydroponic fin or bare fin,Copper fin |
| Fin type | Flat fin, Window fin, louver fin, Smooth sine wave fin |
| Fin space | 1.3-10mm |
| Fan Cover | With cover or without cover,with fan motor or without fan motor |
| Application refrigerant | R417A/R407C/R404A//R410A/R134A, ect. |
| Feature | Eoxy coating, electrophoresis,sandblasting Leaking checking 100% |

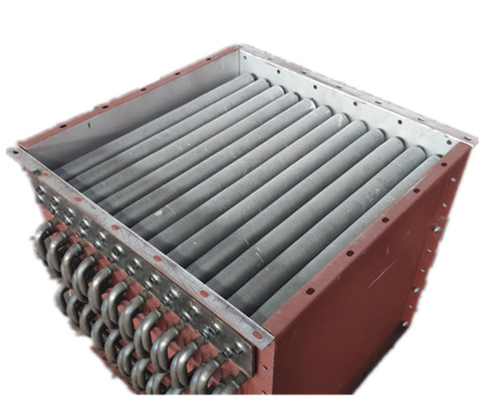

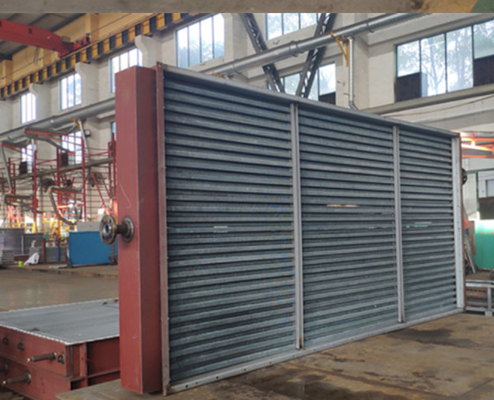

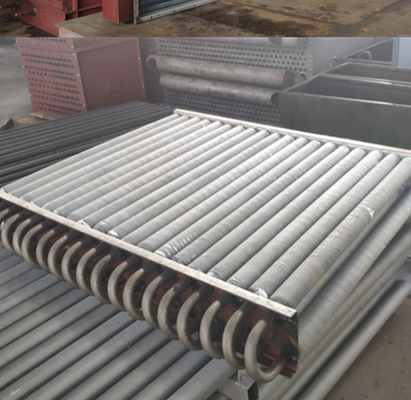

Detailed image
Installation instruction
1.The installation of radiator brackets, brackets should be installed in an accurate position, pay attention to lightly take, lightly put to avoid damage to the radiator by brutal operation.
2.The distance between the back of the radiator and the inner surface of the wall should be not less than 150mm.
3.The branch pipe connecting the radiator should have a slope of 1%~2% according to the different lengths of the branch pipe, and the slope should be conducive to exhaust and water drainage.
4.If the length of the radiator branch pipe exceeds 1.5m, a pipe card should be installed on the branch pipe.
