Product Details:
|
| Name: | 150kva Wire Wesh Welding Machine Automatic/semi-automatic | Color: | Blue/white/red Or Customized |
|---|---|---|---|
| Wire Diameter: | 2.0-6.0mm | Voltage: | 220V/380V/415V/440V |
| Weight: | 8000KGS | Mesh Hole: | 500-1500mm |
| Warranty: | 1 Year | Application: | Hardware And Appliances, Lighting, Lampshades, Kitchenware, Pull-out Baskets, Shelves, Shelves |

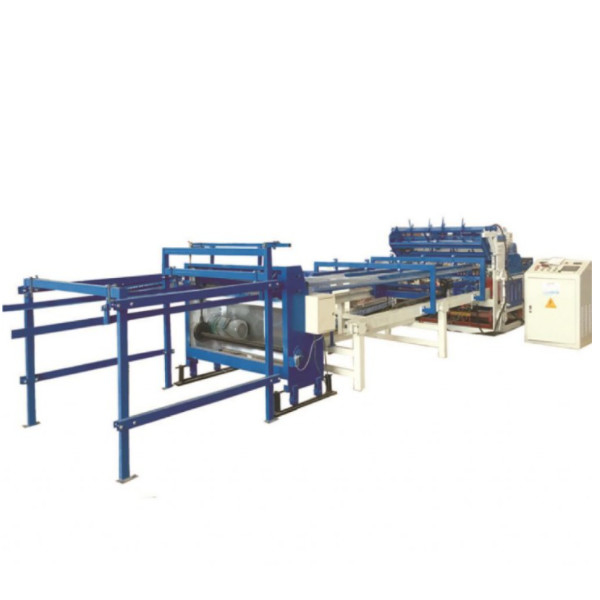

150kva wire wesh welding machine automatic/semi-automatic
Product description
| Wire mesh welding Machine | |
| machine name | wire mesh welding Machine |
| wire diameter | 5-12mm |
| mesh size | 100*100mm-300*300mm |
| max panel width | 4M |
| max panel length | 25m |
| welding speed | 30-50times/minute |
| dimension | 20*3.5*1.7m |
| voltage | 380-440v,50HZ |
1) Each welding transformer is controlled by seperate microcomputer. Once press with multiple welding. Over 30 different mesh sizes can appear on same sheet.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.3) Line wires feed automaticly and fastly. Feeding position is accurate.
4) Cross wires feed automaticly. Feeding position is accurate.
5) Mesh is pulled automaticly and driven by servo motor. Pulling position is accurate.

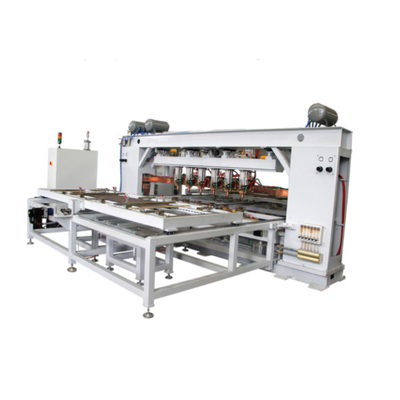

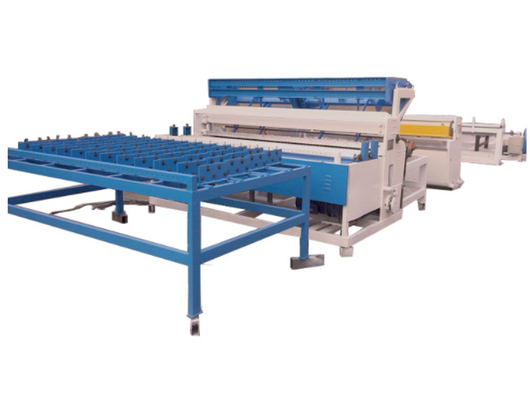

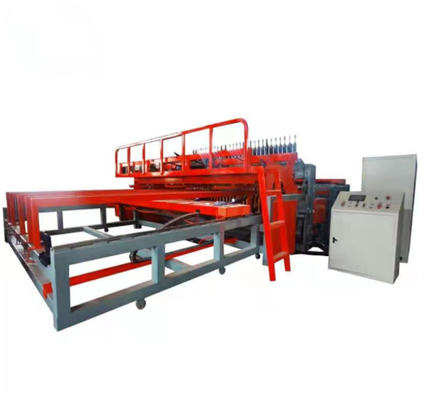

Detailed image
1,Each group of transformers is controlled by a separate microcomputer, once pressurised, many times welded, making the welding more secure, stable, faster and more intelligent.
2,This equipment adopts the pneumatic downward pressure welding method, the welding pressure is even, the welding joint is firm and stable.
3,The welding electrode head is made of high quality chrome zirconium copper material, which has a long service life and reduces the production cost.
4,The enhanced design of the transformer (with patent) can meet the high-speed continuous welding, and there is no open welding and leakage phenomenon.
5,The transformer electrode is cooled by circulating water, which prolongs the service life and reduces the failure rate
6,The whole operation only needs 1-2 persons, which greatly reduces the manpower cost.
7,PLC programming control is adopted, humanized operation interface, easy to operate and master.
8,The mesh specification adjustment adopts LCD touch screen, all welding parameters and production data are set conveniently and quickly.
Translated with www.DeepL.com/Translator (free version)
Application
