Product Details:
|
| Name: | Wire Mesh Welding Machine | Weldable Mesh: | 50*50mm;70*70mm;100*100mm |
|---|---|---|---|
| Color: | Can Be Customized | Feature: | Digitally Controlled ，automatic Drop |
| Voltage: | 220V/380V/415V | Weight: | 1.5-2tons |
| Certification: | CE,ISO9001,ISO9001-2008;CE | Warranty: | 1 Year |

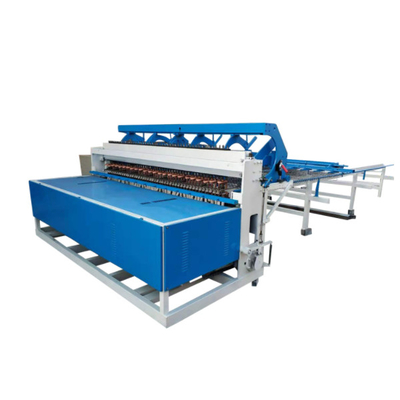

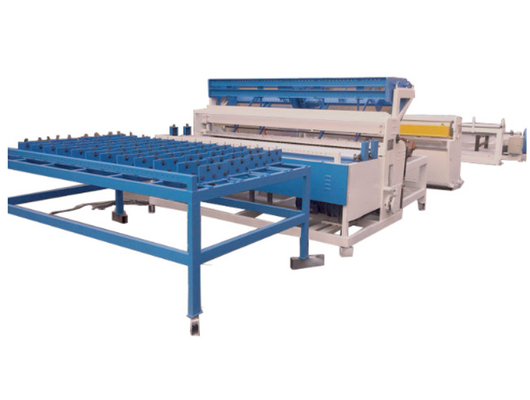

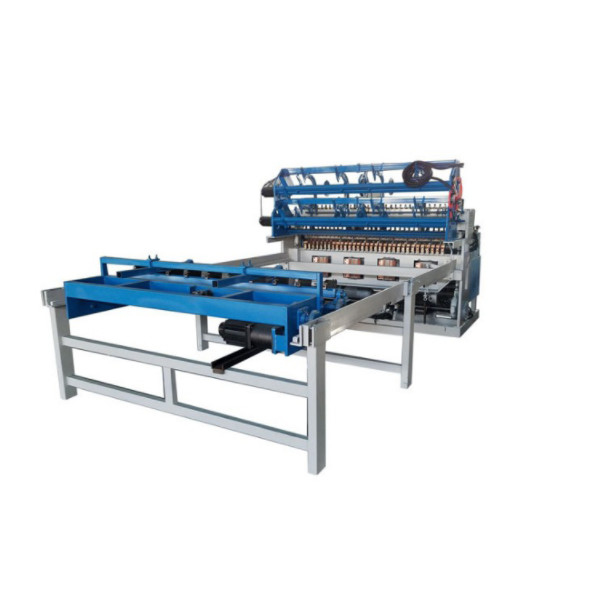

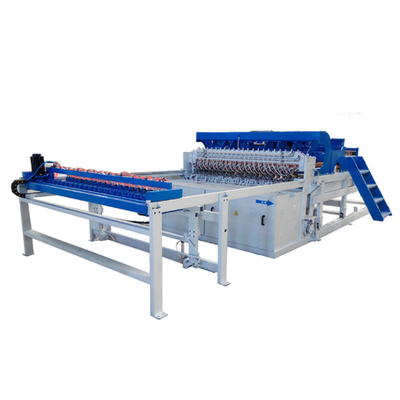

Metal wire mesh welding machine automatic 2 tons weight
Specification
Machine details
1. the line wire feeding on wire coils automatically, through the straight wheels device, make the line wire more straight and finished mesh will be more smooth;
2. cross wire need be pre-straight& cutting and then feeding on hopper automatically;
3. our welding electrodes used 20mm diameter pure copper, durable;
4. the welding transformer use water cooling system, protect machine can running well in a hot area or long time working;
5. the main motor (5.5kw) and helical gear reducer connect the main axis directly, big transmission torque;
6. The cable carrier is imported from Germany, the best one all over the world, protect machine wire, not hung down;
