AC 380V Automatic Steel Wire Mesh Welding Machine for Bridges Highways

AC 380V Automatic Steel Wire Mesh Welding Machine for Bridges Highways
AC 380V Automatic Steel Wire Mesh Welding Machine for Bridges Highways AC 380V Automatic Steel Wire Mesh Welding Machine for Bridges Highways AC 380V Automatic Steel Wire Mesh Welding Machine for Bridges Highways AC 380V Automatic Steel Wire Mesh Welding Machine for Bridges Highways

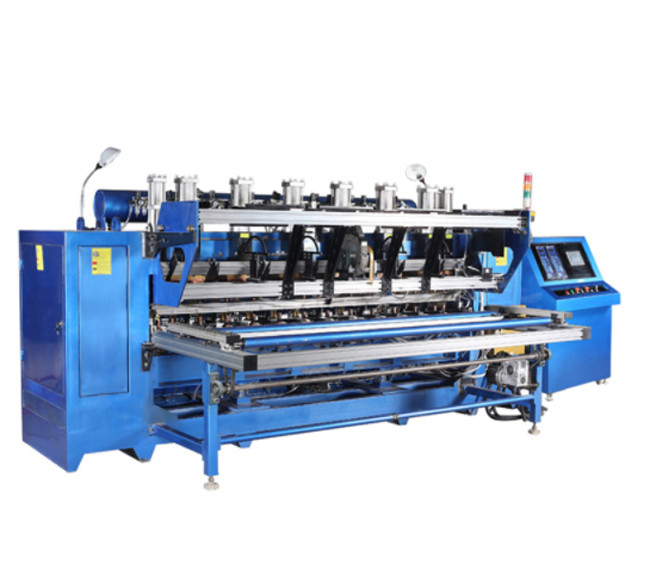

Large Image :  AC 380V Automatic Steel Wire Mesh Welding Machine for Bridges Highways

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001,ISO14001,
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 5-15days
Payment Terms: L/C, T/T
Supply Ability: 3-5 sets per month

AC 380V Automatic Steel Wire Mesh Welding Machine for Bridges Highways

Description
Name: Wire Mesh Welding Machine,China Supplier Construction Welded Fence Wire Mesh Welding Machine Drive Form: Electric
Welding Products: Steel Wire,steel Tube,copper Tube Color: Can Be Customized
Voltage: 220V/380V/415V/440V Weight: 1300KGS
Warranty: 1 Year Certification: CE,ISO9001,ISO9001-2008;CE

AC 380V Automatic Steel Wire Mesh Welding Machine for Bridges Highways





Specification



Model AD-RWM-2000 AD-RWM-2500 AD-RWM-3000
Mesh width Max.2000 mm Max.2500 mm Max.3000 mm
Mesh hole size

100 mm

150 mm
200 mm
300 mm

100 mm

150 mm
200 mm
300 mm

100 mm

150 mm
200 mm
300 mm

Wire diameter 3.0-5.0 mm 3.0-5.0 mm 3.0-5.0 mm
Welding speed 40-80 Times/min 40-80 Times/min 40-80 Times/min
Transformer 125KVA*3
125KVA*4

125KVA*4

125KVA*5

125KVA*5
125KVA*6
Dimensions 8.5 X 2.5 X 1.65 m 9.5 X 3.0 X 1.65 m 12 X 3.5 X 1.65 m
Weight 5500 KG 6500 KG 7500 KG



Detailed image

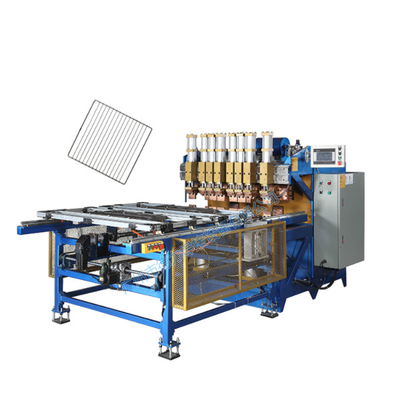

AC 380V Automatic Steel Wire Mesh Welding Machine for Bridges Highways 0

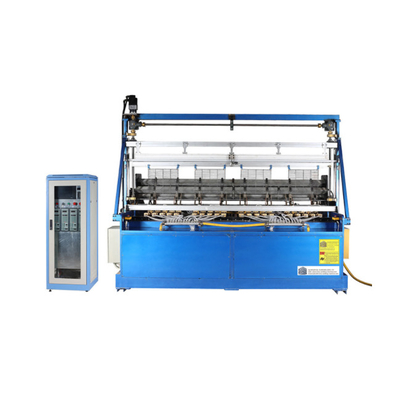

AC 380V Automatic Steel Wire Mesh Welding Machine for Bridges Highways 1

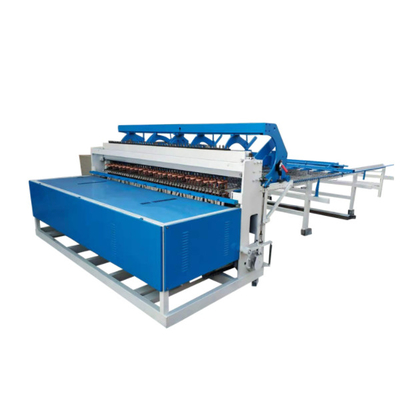

AC 380V Automatic Steel Wire Mesh Welding Machine for Bridges Highways 2





Features



The current and time control of the welding machine and the cylinder action are programmed using a Japanese Mitsubishi programmable logic controller (PLC), which has the following functional features.



The controller is designed for use with secondary rectifier fixed projection welding machines.



The welding process is controlled by the microcomputer in a closed loop, which ensures constant welding current in the event of fluctuations in grid voltage and changes in welding load, thus guaranteeing the quality of the welded joint.



Single spot welding and continuous spot welding functions.



Power failure data saving function, no data loss for 10 years after power failure.



With error self-detection function, various abnormal conditions (SCR, transformer water shortage temperature rise abnormality, power shortage etc.) are displayed with fault codes and a buzzer is sounded.
