Product Details:
|
| Certification: | CE,ROHS,ISO9001 | Color: | Silver Or Customized |
|---|---|---|---|
| Voltage: | 220V/50HZ | Load Type: | Extension |
| Structure: | Single Side Roll Bond Evaporator | Raw Material: | Bundy Tube And Steel Wire |
| Certificate: | CE,ROHS | Cooling Capacity:: | 12kw~ 300kw |
| Highlight: | Multidoor Refrigerator Evaporator,300kw Refrigerator Evaporator,300kw Chiller Evaporator |
||
| Raw material | Aluminum tube or copper tube and aluminum plate | |
| Application: | Refrigeration parts | |
| Expand size: | L max≤1500mm, W max≤550mm | |
| Structure: | Plate and tube combined type | |
| Key process: | Prepare the material→aluminum plate processing→bending →crushing →bonding→sticking a double sided tap →welding →leakage test →parceling capillary→bending B →shaping→keeping pressure→ inspection→packing |
|
| Performance: | (1)With passivation surface treatment to prevent corrosion. (2)Inner cleanness can meet the requirement of R134a and CFC cooling syste (3) Can satisfy the cooling capability requirements of the designed refrigerator. |
|
| Residual moisture(mg): | ≤10; ≤20; ≤25; ≤30 | |
| Residual impurity(mg): | ≤100mg/100cm3 | |
| Max single impurity: | ≤2mg |

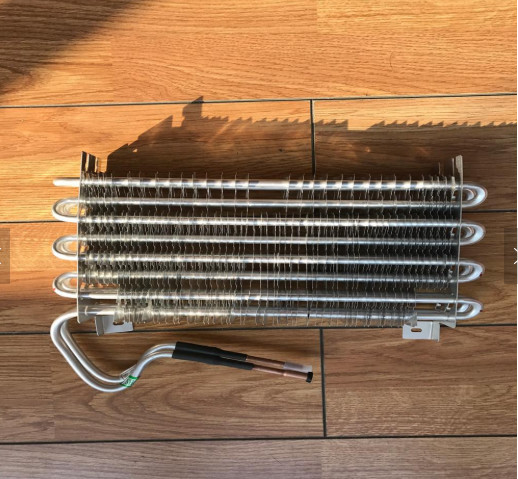

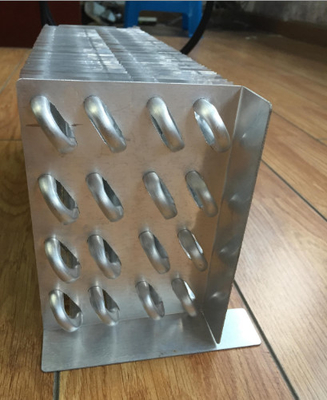

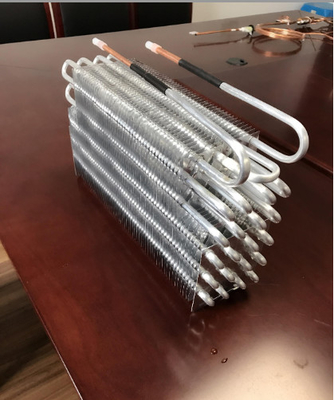

Detailed image
