Product Details:
|
Name: | 16Bar 6.35 Copper Fin Type Heat Exchanger Condenser Large Surface Area | Fin Type: | Flat Fin, Window Fin, Louver Fin, Smooth Sine Wave Fin |
---|---|---|---|
Voltage: | 50/60HZ,220V/380V | Tube Material: | Copper/titanium |
Type: | Fin Type Tube Heat Exchanger | Aluminum Fin: | Hydroponic Fin Or Bare Fin,Copper Fin |
Size: | 6.35 Copper Tube | Application: | Defense |
High Light: | 16Bar Fin Type Heat Exchanger,6.35 Fin Type Heat Exchanger,6.35 Copper finned tube condenser |
Product name | 16Bar 6.35 Copper Fin Type Heat Exchanger Condenser Large Surface Area |
Power | 1/5HP, 1/4HP, 1/3HP, 3/8HP, 1/2HP, 3/4HP, 1HP, 1.5HP, 2HP,3HP, 4HP…20HP |
Materials | Copper tube aluminum fin, galvanized plate |
Tube O.D. | 7mm. 7.94mm, 9.52mm, 12.75mm, 15.88mm |
Aluminum fin | Hydroponic fin or bare fin,Copper fin |
Fin type | Flat fin, Window fin, louver fin, Smooth sine wave fin |
Fin space | 1.3-10mm |
Fan Cover | With cover or without cover,with fan motor or without fan motor |
Application refrigerant | R417A/R407C/R404A//R410A/R134A, ect. |
Feature | Eoxy coating, electrophoresis,sandblasting Leaking checking 100% |

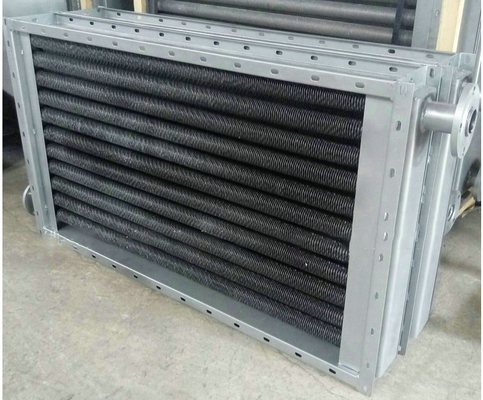

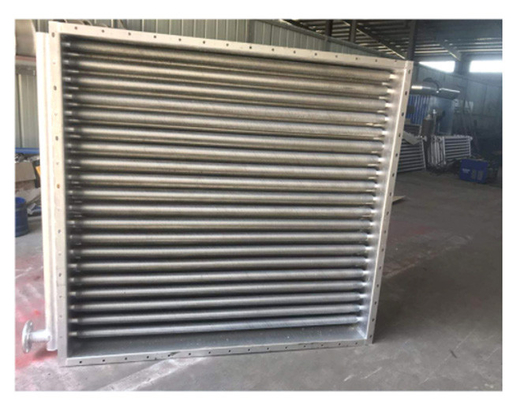

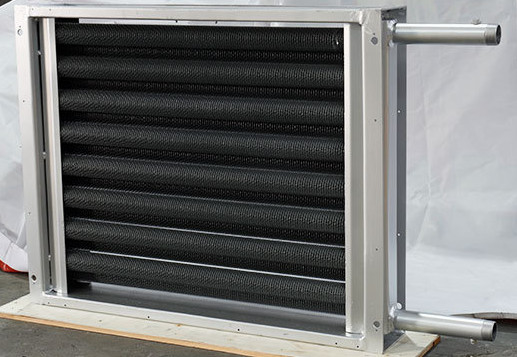

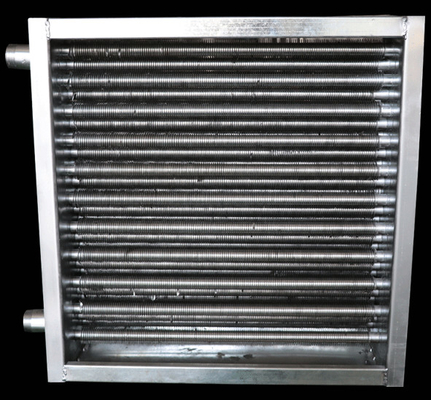

Detailed image
Advantages
High heat transfer efficiency especially in gas treatment
Larger heat transfer area
Approximately 5 times lighter in weight than that of shell and tube heat exchanger.
Able to withstand high pressure
