Product Details:
|
| Name: | Folding Copper Tube Fin Type Condenser Coil Heat Exchanger | Type: | Tube Fin Heat Exchanger |
|---|---|---|---|
| Voltage: | 50/60HZ,220V/380V | Fin Type: | Flat Fin, Window Fin, Louver Fin, Smooth Sine Wave Fin |
| Tube Material: | Copper/titanium | Power: | 1/5HP, 1/4HP, 1/3HP, 3/8HP |
| Connector: | Flange | Application: | Outdoor Wood Furnace And Other Refrigeration |
| Highlight: | Folding copper tube condenser,3/8HP coil heat exchanger,Folding coil heat exchanger |
||
| Product name | Folding Copper Tube Fin Type Condenser Coil Heat Exchanger |
| Power | 1/5HP, 1/4HP, 1/3HP, 3/8HP, 1/2HP, 3/4HP, 1HP, 1.5HP, 2HP,3HP, 4HP…20HP |
| Materials | Copper tube aluminum fin, galvanized plate |
| Tube O.D. | 7mm. 7.94mm, 9.52mm, 12.75mm, 15.88mm |
| Aluminum fin | Hydroponic fin or bare fin,Copper fin |
| Fin type | Flat fin, Window fin, louver fin, Smooth sine wave fin |
| Fan Cover | With cover or without cover,with fan motor or without fan motor |
| Application refrigerant | R417A/R407C/R404A//R410A/R134A, ect. |
| Feature | Eoxy coating, electrophoresis,sandblasting Leaking checking 100% |

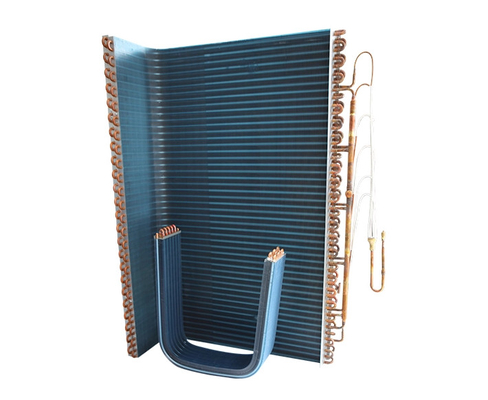

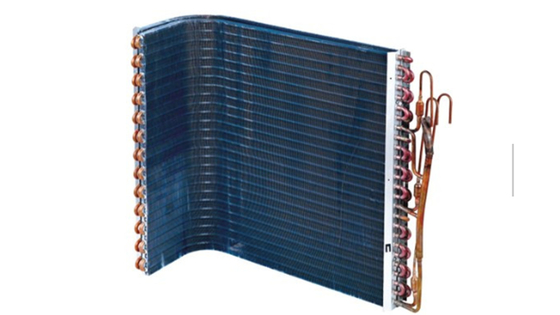

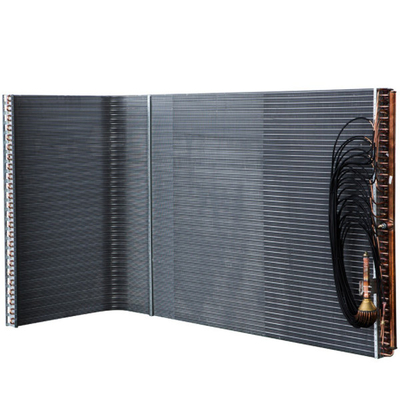

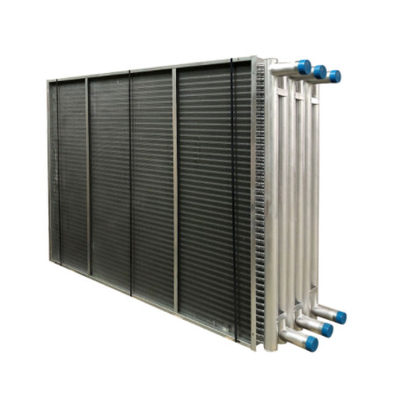

Detailed image
Advantages
High heat transfer efficiency especially in gas treatment
Larger heat transfer area
Approximately 5 times lighter in weight than that of shell and tube heat exchanger.
Able to withstand high pressure
