Product Details:
|
| Name: | 0.7Mpa Propellent Longitudinal Finned Type Heat Exchanger | Fin Material: | Stainless Steel |
|---|---|---|---|
| Wall Thickness: | SS304 T0.6, SS316L T0.9 | Frame: | Galvanized |
| Pressure: | 0.7Mpa / 4.2Mpa | Structure: | Finned Tube |
| Voltage: | AC110V/AC220~24V/AC380V/DC12V/DC24V,220/380v,220V/50Hz | Application: | Food Processing,air Conditioning System |
| High Light: | Propellant longitudinal finned tube Exchanger,0.7Mpa longitudinal finned tube Exchanger,0.7Mpa finned tube coil heat exchangers |
||
| Tube Size | Fin (OD) | Fin Height | Fin Thickness | Fins Distance |
| Φ18x2 mm | Φ38 mm | 10 mm | 0.45 mm | 3 mm |
| Φ21x2 mm | Φ45 mm | 12 mm | 0.35 mm | 3 mm |
| Φ21x2 mm | Φ51 mm | 15 mm | 0.35 mm | 3 mm |
| Φ25x2 mm | Φ50 mm | 12.5 mm | 0.3 mm | 3 mm |
| Φ25x2 mm | Φ55 mm | 15 mm | 0.3 mm | 3 mm |
| Φ32x3 mm | Φ62 mm | 15 mm | 0.3 mm | 3 mm |
| Other finned tube size can be customized. | ||||
There are 2 kinds of the SS tube & fin heat exchangers, which are SS tube & Al fin type and SS tube & SS fin full SS type.
The products are applied for commercial A/C, industrial refrigeration, Gas cooler, Energy Recovery system, pollution gas recovery system,
industrial dryer, many other kinds of the refrigeration systems.
The hairpin tube can be “U” bended and straight, end to be connected by return bender.
The tube expanding and tube welding technology of SS heat exchanger are specialized, SS tube welding by orbital machinery. all the connect point welded smooth, full and nice appearance.

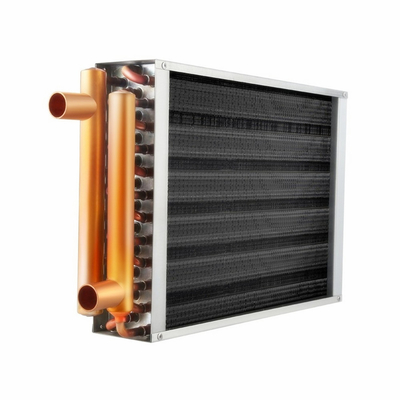

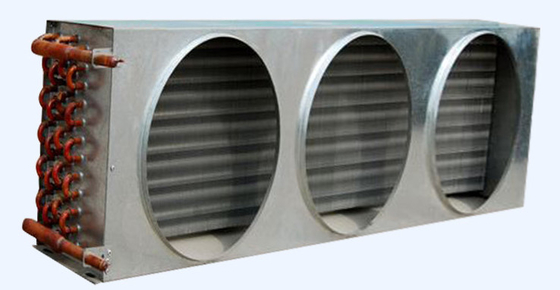

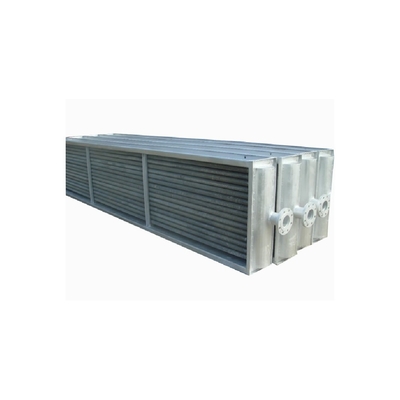

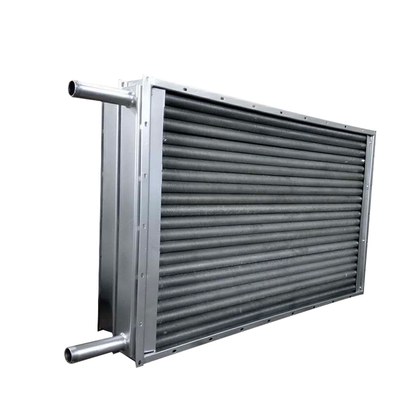

Detailed image
Fin type heat exchanger advantages
High heat transfer efficiency especially in gas treatment
Larger heat transfer area
Approximately 5 times lighter in weight than that of shell and tube heat exchanger.
Able to withstand high pressure
