21mm Galvanized Finned Type Tube Heat Exchanger for industrial refrigeration

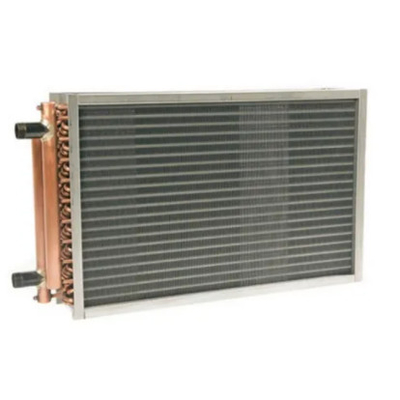

Large Image : 21mm Galvanized Finned Type Tube Heat Exchanger for industrial refrigeration

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM/ODM
Certification:	CE,ROHS ,ISO9001,ISO14001,
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	wooden packing
Delivery Time:	3-15 days for 1-5 sets
Payment Terms:	L/C, T/T
Supply Ability:	300 pcs one day

Contact Now

21mm Galvanized Finned Type Tube Heat Exchanger for industrial refrigeration

Description

Name:	21mm Galvanized Finned Type Tube Heat Exchanger	Structure:	Finned Tube
Fin Material:	Stainless Steel	Frame:	Galvanized
After-sales Service Provided:	Online Support,Engineers Available To Service Machinery Overseas	Voltage:	AC110V/AC220~24V/AC380V/DC12V/DC24V,220/380v,220V/50Hz
Wall Thickness:	SS304 T0.6, SS316L T0.9	Application:	Cooling / Condensing / Drying / Dehumidification
High Light:	Galvanized Finned Tube Heat Exchanger , 21mm Finned Tube Heat Exchanger , 21mm aluminium finned tubes Exchanger

21mm Galvanized Finned Type Tube Heat Exchanger for industrial refrigeration

Specification

Tube Size	Fin (OD)	Fin Height	Fin Thickness	Fins Distance
Φ18x2 mm	Φ38 mm	10 mm	0.45 mm	3 mm
Φ21x2 mm	Φ45 mm	12 mm	0.35 mm	3 mm
Φ21x2 mm	Φ51 mm	15 mm	0.35 mm	3 mm
Φ25x2 mm	Φ50 mm	12.5 mm	0.3 mm	3 mm
Φ25x2 mm	Φ55 mm	15 mm	0.3 mm	3 mm
Other finned tube size can be customized.

Materials of the heat exchanger

Tube Φ12.7(1/2”), Φ15.88(5/8”), SS304/SS316/SS316L
Wall thickness: SS304 t0.6, SS316L t0.9
Fins: Aluminum, bare or hydrophilic coated, t0.15～0.30; SS304 t0.2～0.30
Fin pitch:Φ12.7 (1/2”)tube, F.P1.8～6.35mm; Φ15.88 (5/8”) F.P2.5～12.0mm
Fin shape: surface sine wave /Plat, edge shape: straight or Corrugated Wave
Metal sheet: Stainless steel plate.
More details according to the drawing or specifics of custom

Detailed image

21mm Galvanized Finned Type Tube Heat Exchanger for industrial refrigeration 0

21mm Galvanized Finned Type Tube Heat Exchanger for industrial refrigeration 1

21mm Galvanized Finned Type Tube Heat Exchanger for industrial refrigeration 2
