4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave

4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave
large.img.alt
4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave 4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave 4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave 4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave 4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave

Large Image :  4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001,ISO14001,
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 3-15 days for 1-5 sets
Payment Terms: L/C, T/T
Supply Ability: 300 pcs one day

4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave

Description
Name: 4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave Fin Material: Stainless Steel
Structure: Finned Tube After-sales Service Provided: Online Support,Engineers Available To Service Machinery Overseas
Voltage: AC110V/AC220~24V/AC380V/DC12V/DC24V,220/380v,220V/50Hz Wall Thickness: 0.9mm
Weight: 100-5000kg,50-1000kgs Application: Refrigeration Industries.
High Light:

4.2Mpa copper finned tube Heat Exchanger

,

SS316L copper finned tube heat exchanger

,

4.2Mpa steel finned Heat Exchanger

4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave

Specification



Tube Size Fin (OD) Fin Height Fin Thickness Fins Distance
Φ18x2 mm Φ38 mm 10 mm 0.45 mm 3 mm
Φ21x2 mm Φ45 mm 12 mm 0.35 mm 3 mm
Φ21x2 mm Φ51 mm 15 mm 0.35 mm 3 mm
Φ25x2 mm Φ50 mm 12.5 mm 0.3 mm 3 mm
Φ25x2 mm Φ55 mm 15 mm 0.3 mm 3 mm
Φ32x3 mm Φ62 mm 15 mm 0.3 mm 3 mm
Other finned tube size can be customized.

Detailed image

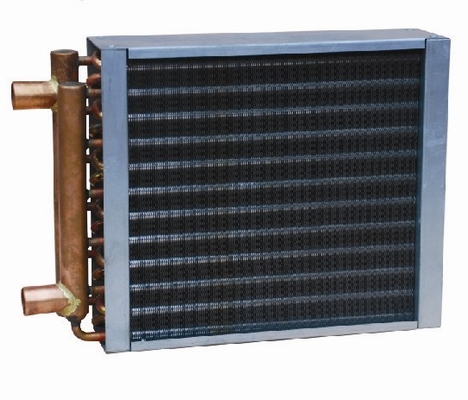

4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave 0

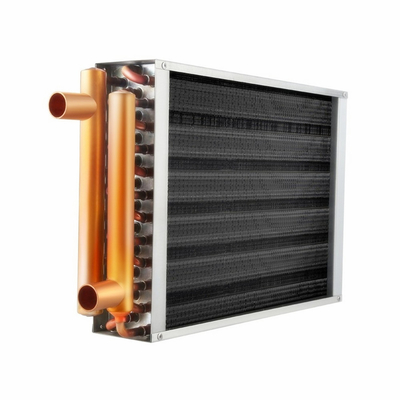

4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave 1

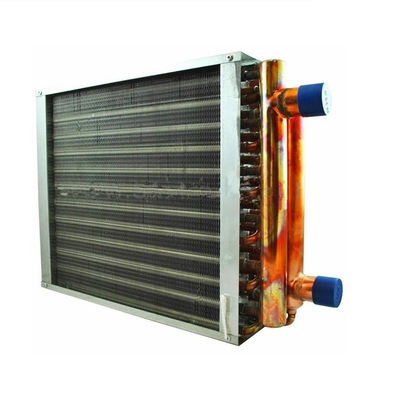

4.2Mpa SS316L Copper Finned Tube Heat Exchanger Surface Sine Wave 2

Application


Finned tube heat exchanger is applied and equipped with fins on one side to increase the heat transfer area, improve the degree of turbulence in the fluid and the convection heat transfer coefficient when two fluid convection heat transfer coefficient has large difference.
