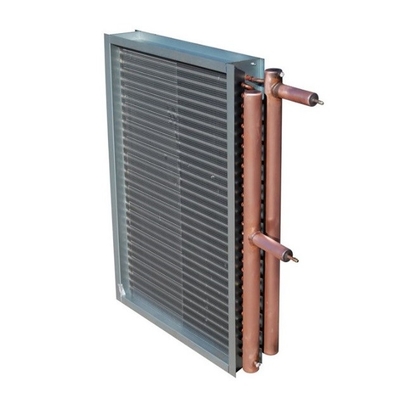

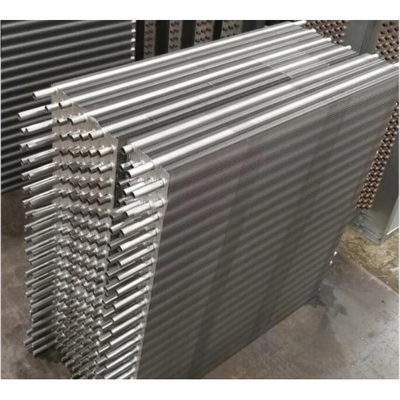

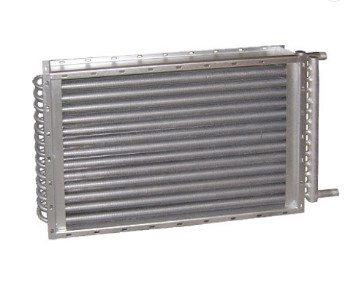

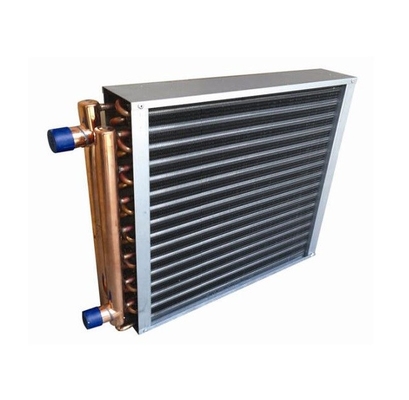

Product Details:
|
Name: | 3/4HP Flat Tube Corrugated Fin Type Heat Exchanger | Fin Type: | Flat Fin, Window Fin, Louver Fin, Smooth Sine Wave Fin |
---|---|---|---|
Voltage: | 50/60HZ,220V/380V | Tube Material: | Copper |
Tube O.D.: | 7mm. 7.94mm, 9.52mm, 12.75mm, 15.88mm | Fin Material: | Copper /SS/Al |
Weight: | 10-100kgs | Application: | Machinery & Hardware |
High Light: | 3/4HP Fin Type Heat Exchanger,GI flat tube heat exchanger,20.1m3/s flat tube heat exchanger |
Specification
Finned tube type | Diameter (mm) | Fin specific | ||
Tube | Finned O.D | W*t | F.P | |
Steel-steel SRZ | Φ21*2.0 | Φ41 | 10*0.4 | 5.0/6.0/8.0 |
Steel-steel GLII | Φ21*2.0 | Φ41 | 10*0.3 | 5.0/6.0/8.0 |
SS-AL BGL | Φ21*2.0 | Φ41 | 10*0.3 | 3.2/5.0/6.0 |
SS-SS | Φ21*2.0 | Φ41 | 10*0.3 | 3.2/5.0/6.0 |
Φ21*2.0 | Φ51 | 15*0.3 | 3.2/5.0/6.0 | |
Φ25*2.0 | Φ45 | 10*0.3 | 3.2/5.0/6.0 | |
Φ25*2.0 | Φ55 | 15*0.3 | 3.2/5.0/6.0 | |
Copper-Al | Φ16*1.0 | Φ36 | 10*0.2 | 3.2/4.2/5.0/6.5 |
Application
The cost of fin tube heat exchanger is generally higher than conventional heat exchangers due to a higher level of detail required during manufacture.
However, these costs can often be outweighed by the cost saving produced by the added heat transfer.
fin tube heat exchanger are generally applied in industries where the fluids have little chances of fouling.
The delicate design as well as the thin channels in the fin tube heat exchanger make cleaning difficult or impossible
