Product Details:
|
| Structure: | Tube Heat Exchanger | Condition: | New |
|---|---|---|---|
| Weight: | 7-105kgs | Dimension(l*w*h): | Custimized Made |
| Warranty: | 1 Year | Voltage: | 220v/380v/customized |
| After-sales Service Provided: | Online Support | ||

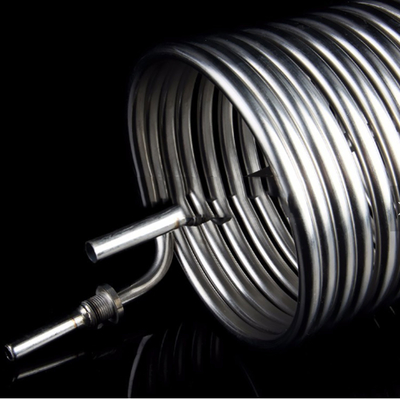

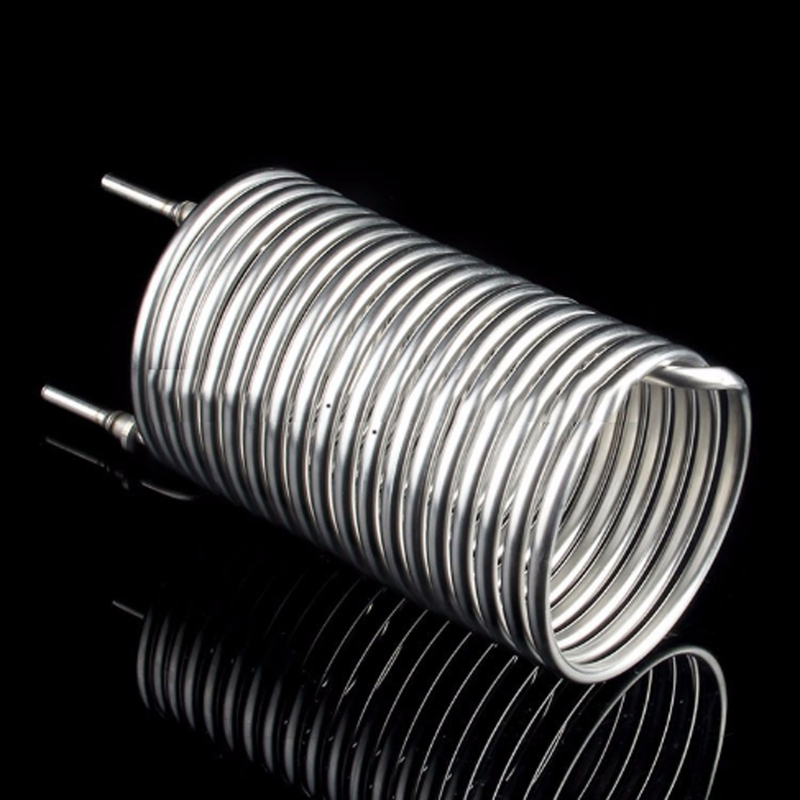

| High Light: | stainless steel coil heat exchanger,r22 coil type heat exchanger |
||
counterflow heat exchanger, custom evaporator coils, double coil heat exchanger stainless steel
Product Description
Work Condition:
· Refrigerant side(In the tube): R22,R134a,R407c,R410a etc.
· Water side (in your tank):Nature water,drink water,seawater etc
Material:
· Heat transfer Tube: Titanium / 316L / SUS304 / Copper
Features:
· Usually used for heating and cooling.
· Pure titanium tube has super strong corrosion proof ability and high intensity.
· The seamless titanium tube was tested by 2.0MPa pressure to make sure the tube is strong and not leakage .
· It has the character of strong corrosion resistance ,good heat resistance , high conductivity, non-toxic,no-scale ,no-blocking , no contamination of medium,and not easy to formed oxides on the surface.
| Model | Qty. | Diameter(mm) | Freon Inlet / Outlet | External Dimension(mm) | |||
| e | d | a2 | a1 | A | B | C | |
| WHC-1.0DG | 6.5 Turns | 19.05 | 12.7 | 12.7 | 375 | 165 | 150 |
| 16.0 | 12.7 | 12.7 | 375 | 165 | 150 | ||
| WHC-1.5DG | 8.5 Turns | 19.05 | 12.7 | 12.7 | 375 | 240 | 150 |
| 16.0 | 12.7 | 12.7 | 375 | 240 | 150 | ||
| WHC-2.0DG | 10.5 Turns | 19.05 | 12.7 | 12.7 | 375 | 305 | 150 |
| 16.0 | 12.7 | 12.7 | 375 | 305 | 150 | ||
| WHC-3.0DG | 13.5 Turns | 19.05 | 12.7 | 19.05 | 375 | 475 | 150 |
| 16.0 | 12.7 | 16.0 | 375 | 475 | 150 | ||
| WHC-5.0DG | 18.5 Turns | 19.05 | 12.7 | 19.05 | 375 | 645 | 150 |
| 16.0 | 12.7 | 16.0 | 375 | 645 | 150 | ||
