High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification

High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification
High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification

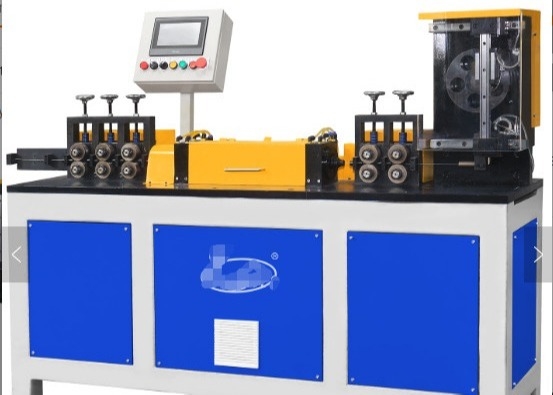

Large Image :  High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001,ISO14001,
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 20-25days
Payment Terms: L/C, T/T
Supply Ability: 1-3 sets per month

High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification

Description
Name: High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification Place Of Origin:: Jiangsu, China
Type: Straightener & Cutter Dimension(L*W*H): 2300 X 650 X 1300 Mm
Power(W): 1120 Tube Material: Copper / Aluminum
Cutting Tolerance: 0.5mm/1m Application: High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification
High Light:

bundy tube straightener

,

straightening and cutting machine

High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification



Configuration

No. Items Brand
1 Machine Main Body Aidea professional welding, post weld stress relief treatment
2 Painting Sand blasting treatment, surface spray powder, color can be customized.
3 PLC Panasonic
4 Servo Motor TECO
5 Touch Screen Weinview/Samkoon
6 Encoder Omron
7 Low Voltage Apparatus Schneider



Overview



Model A B C D E
Input Power AC380V(50Hz/60Hz)
Suitable Wire Material Normal low carbon steel wire/stainless steel wire/galvanized steel wire/copper coated steel wire
Air Pressure 0.5-0.6Mpa
Wire Diameter 1.1-1.5mm 1.6-3mm 2.0-4.0mm 3.0-5.0mm 5.0-7.0mm
Cutting Length 50-5000mm
Max. Cutting Speed Max. 350pcs/min Max. 250pcs/min Max. 250pcs/min Max. 230pcs/min Max. 200pcs/min
Wire Speed 110m/min 100m/min 90m/min 80m/min 70m/min
Cutting Precision ±0.5mm (except for accelerate and decelerate)
Operation System PLC Touch Screen
Running Mode Automatic


Detailed image

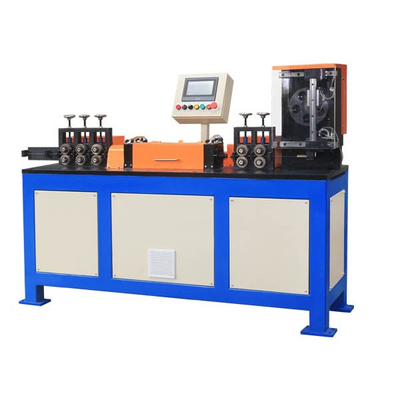

High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification 0

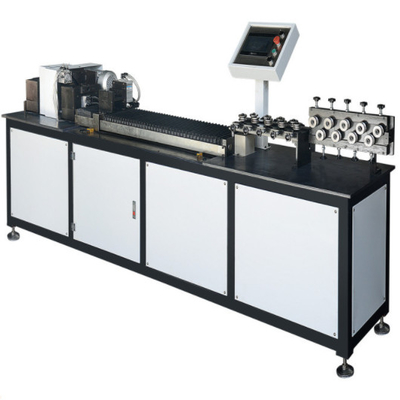

High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification 1

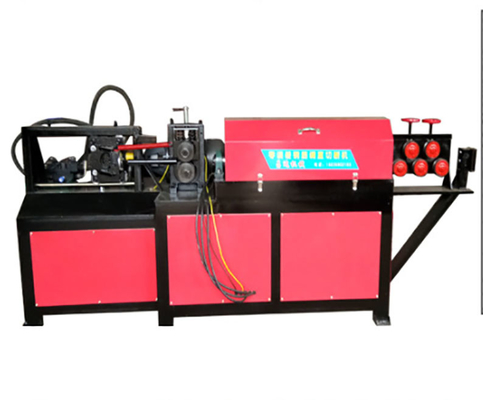

High Frequency Tube Straightening Cutting Machine Energy Saving With CE ISO 9001 Certification 2

Production information



Steel Wire straightening and cutting machine

Steel wire straightening and cutting machine is a kind of steel bar processing equipment, which is mainly used for straightening and cutting all kinds of steel bar materials, such as ordinary carbon steel, hot-rolled round steel, rebar, cold-rolled steel bar and so on. steel wire straightening and cutting machine

Straightening and cutting machine can be widely used in bridge, pile foundation, building construction, standardized construction, steel bar processing factory and other industries.
