Small Error Tube Straightening & Cutting Machine Low Power Consumption

Small Error Tube Straightening & Cutting Machine Low Power Consumption
Small Error Tube Straightening & Cutting Machine Low Power Consumption Small Error Tube Straightening & Cutting Machine Low Power Consumption Small Error Tube Straightening & Cutting Machine Low Power Consumption Small Error Tube Straightening & Cutting Machine Low Power Consumption

Large Image :  Small Error Tube Straightening & Cutting Machine Low Power Consumption

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001,ISO14001,
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 20-25days
Payment Terms: L/C, T/T
Supply Ability: 1-3 sets per month
Contact Now

Small Error Tube Straightening & Cutting Machine Low Power Consumption

Description
Name: Small Error Tube Straightening & Cutting Machine Low Power Consumption Place Of Origin: Jiangsu, China
Type: Straightener & Cutter Dimension(L*W*H): 2300 X 650 X 1300 Mm
Power(W): 1120 Feeding Speed: 70m/min
Tube Material: Copper / Aluminum / Bundy Tube Application: Ventilation
Highlight:

bundy tube straightener

,

straightening and cutting machine

Small Error Tube Straightening & Cutting Machine Low Power Consumption

Specification



Input Voltage 440V, 2-phase 50Hz
Applicable Tube Bundy tube
Working Air Pressure 0.6-0.8Mpa
Tube Coil Specification 4.76mm
Tube Wall Thickness 0.4~1.5mm
Making Length 50mm~3860mm
Output Power 1.12KW
Control System Full Automatic
Max Material Feeding Speed 60m/min
Precision ≤1000mm±0.5mm；≤3000mm±1mm；
≤5000mm±1.5mm
Machine Dimension 2000x500x1500(mm)
Weight 627kg

Production Description

Copper aluminum bundy tube straightener and cutting machine is special designed for copper and aluminum tube process, which is mainly used for tube blanking before tube bending or welding process of condenser and evaporator.

Compare to normal design with two-half clamping die, we design the clamping die in three parts according to lathe chuck structure, which can minimize the tube distortion during cutting, and the clamping die changing / adjustment will be more easier.

Detailed image

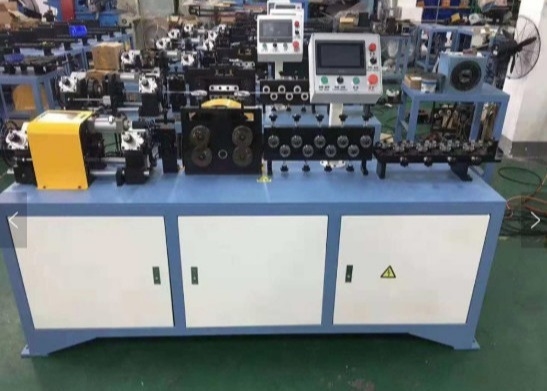

Small Error Tube Straightening & Cutting Machine Low Power Consumption 0

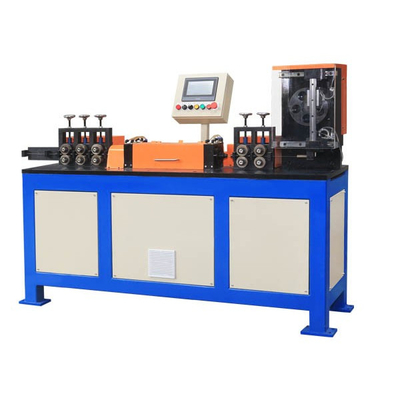

Small Error Tube Straightening & Cutting Machine Low Power Consumption 1

Guarantee

The guarantee period is one year since the date B/L. During this period, we will offer free parts for changing if machine quality problem.

Also the spare parts can be offered in original cost after that. The freight for part sending will be paid by buyer.

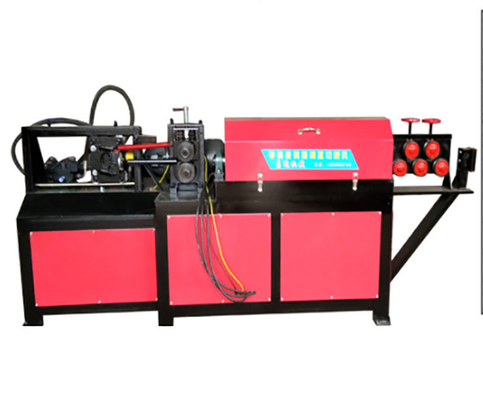

Small Error Tube Straightening & Cutting Machine Low Power Consumption 2

After-Sales Service

We offer free training here in China. Also we can send technicians oversea for whole line installation and training.

The relevant cost including Visa, insurance, round flight ticket, labor cost and accommodation should be borne by buyer.

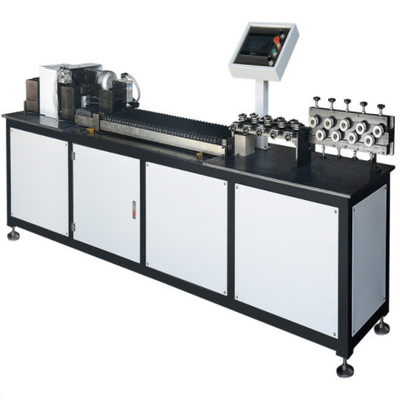

Small Error Tube Straightening & Cutting Machine Low Power Consumption 3

Supply Ability

Supply Ability:20 Set/Sets per Month Automatic coil steel bundy aluminum copper tube pipe

Packaging & Delivery

Packaging Details: packaged within wooden case.
Port:  Shanghai
Lead Time : 30 days

Small Error Tube Straightening & Cutting Machine Low Power Consumption 4

Tag:

bundy tube straightener,

straightening and cutting machine,

wire straightener and cutter
