Product Details:
|
| Name: | Refrigeration Evaporator | Air Throw: | 6M ~ 46M |
|---|---|---|---|
| Tube Material: | Copper Tube | Color: | Paint As Customers Needs |
| Voltage: | 220V/50HZ | Condition: | New |
| Weight: | 5-500KG Customized | Dimension(l*w*h): | Custimized Made |
| High Light: | refrigerator heat exchanger,ac heat exchanger |
||

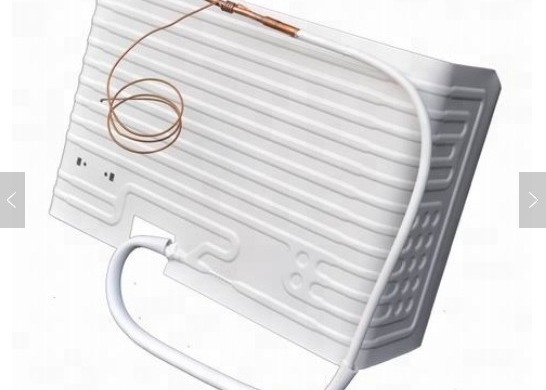

Part Name : Roll bond evaporator
Raw material : Al-plate , finished products
Raw material Al plate thickness
Structure: Double side roll bond evaporator
Single side roll bond evaporator
Part single side roll band evaporator
Key process: Prepare material--cleaning-roughing surface-prinnting--riveting
--Rolling--Annealing--Blow up-- Punching--Folding and shaping-
capillary connecting--Assembley welding-leakage test--cleaning
and drying--coating --inspection--packing
Performance:1) Treated surface with powder coating to prevent corrosio
2) Inner cleaness can meet the requirements of R134A and CFC cooling system
3) Can meet the cooling capability requirement of the designed refrigeration
Coating thickness: thickness of coating 40-90 μ m
Hardness of coating :≥2H
Impact of coating :50cm?kg/cm impact, no crack
Adhension of coating: ≥two grade
Flexibility of coating : Around R=3D bend 180 , no crack or no fall off
Colour tolerance of powder painting E≤1.5
Application :Refrigeration ,freezer
3000 Piece/Pieces per Day
Packaging Details
wooden case, sea-worth packing ,accept customized.
Port:shanghai or ningbo
|
Quantity(Pieces) |
1 - 1000 |
1001 - 10000 |
>10000 |
|
Est. Time(days) |
7 |
10 |
To be negotiated |
Contact Person: Aidear
Tel: +8618951221723
