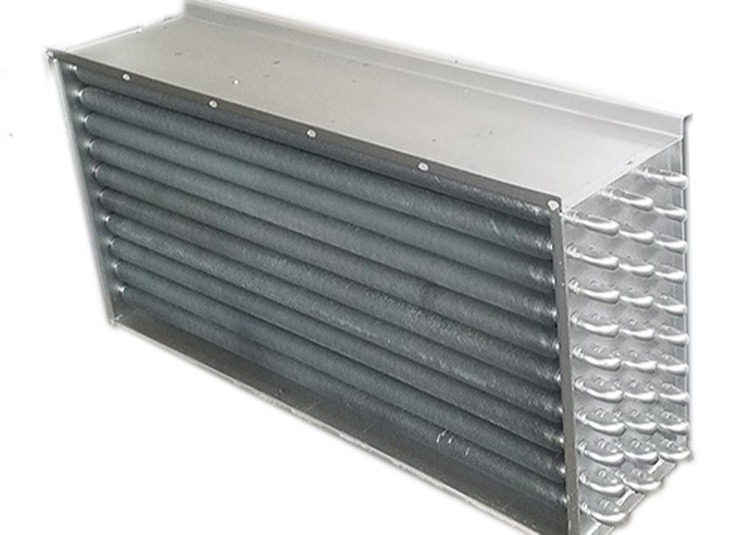

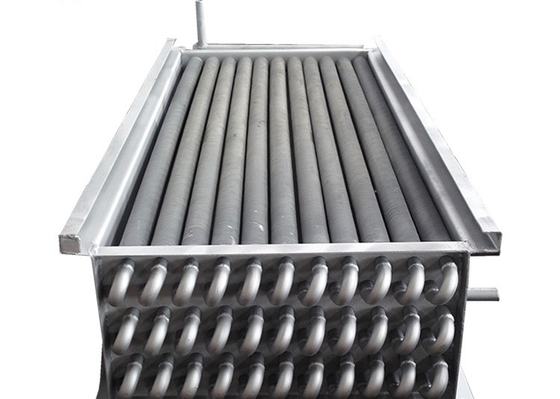

Customized Made Finned Tube Heat Exchanger 2.5Mpa Maximum Working Pressure

Finned tube heat exchanger of maximum Working Pressure:2.5Mpa

Overview

Liquid Flow Rate:Customized Made

Maximum Working Pressure:2.5Mpa

Weight:54 kg

Condition:New

Place of Origin:Jiangsu, China

Model Number:OEM

Structure:Tube Heat Exchanger

Voltage:Customized

Dimension(L*W*H):Custimized Made

Power(W):DESIGNED

Certification:CCC, CE, UL

Heating area:8.78

Ventilation net sectional area:0.155

row number:3

connecting pipe:11/2"

Warranty:One Year

After-sales Service Provided:No overseas service provided

Application

Chilled water cooling coil
Hot sale US market widely use on home heating

chilled water cooling coil

* Usage : For boilers, outdoor installed wood furnaces, composition of stoves

* Model:16*18*3 row

* Materials as bellow:

Tube coil: 3/8” seamless copper (3row)

Plate fin: Aluminum

Core housing: Galvanized steel

Header: 1" ID Copper

* Raw material: (1)Cu tube:3/8mm", (2)Al foil thickness: 0.13-0.2mm

* Application: outdoor wood furnace parts

* Structure: (1) pull and expanded type (2) slant inserting type

* Key process :prepare the material→starving tube and shaping→inserting fins

and enlarging tube→ leakage test→keeping pressure→packing

* Performance

(1) Surface treated with powder coating to prevent corrosion

(2) inner cleanness

(3) Can satisfy the cooling capability requirements of the designed refrigerator.

* Producing capability 6 million sets per year

This new styleChilled water cooling coil can be easily installed by just slipping it into the plenum and attaching with self threading screws. You will not need any special tools to install.

This unit is easier to install than others on the market because it attachs from the front instead of the side.

The Chilled water cooling coil can also be used as a stand alone heat source by simply attaching

a fan or squirrel cage to one side of the unit. They can be installed in either the hot air side or

the cold air return of a furnace. Please note that if installed in the cold air return you will need to install

a 3 way zone valve in order for the fan to operate properly.

Our Services

1. Punctual delivery time:

• We put your order into our tight production schedule, keep our client informed about production process, ensure your punctual delivery time.
• Shipping notice/ insurance to you as soon as your order is shipped.

2. After sales service:

• After receive the goods, We accept ur feedback at first time.
• We could provide installation guide, if you have need, we could give you global service.
• Our Sales are 24-hours online for ur request

3. Professional sales:

• We value every inquiry sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team.

we have many global clients, we offer professional service to them. With the aim of "to establish a close strategic partnership and develop together with customers", we will work whole-heartedly to improve our products and service. We will also pledge to work jointly with business partners to elevate our cooperation to a higher level and share success together with our customers. We are looking forward to establishing relationships with you in the near future.

4, Lead Time

• The last but not  least ,we can do the customized once we received the drawing and specification .
