Product Details:
|
| Voltage: | AC110V/AC220~24V/AC380V/DC12V/DC24V,220/380v,220V/50Hz | Structure: | Fin-tube Type |
|---|---|---|---|
| Weight: | 100-5000kg,50-1000kgs | Fin Material: | Stainless Steel |
| Tube Material: | Aluminum | After-sales Service Provided: | Online Support,Engineers Available To Service Machinery Overseas |
| Maximum Working Pressure: | Variable | ||
| Highlight: | fridge heat exchanger,ac heat exchanger |
||
| Item | Details |

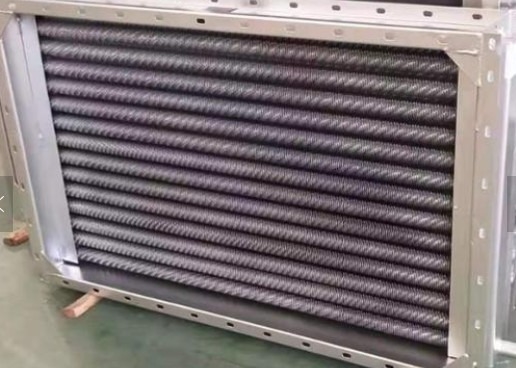

| Description | Heat exchanger, Air cooler |
| Cooling Medium | Air,Oil,Water or other liquid |
| Material |
Tube:Copper,Carbon/ Alloy steel,Stainless steel,Titanium Fins:Copper,carbon steel,Stainless steel or Aluminum |
| OD | 15-219mm |
| WT | 1.2-20mm |
| Min.Order quantity | 1 set. |
| Payment term: | TT |
| Delivery time |
Depends on the specific orders,normallywithin 40days. If you have drawings,it will be better for us to offer you.Please send it by email |
Chilled water cooling coil
Hot sale US market widely use on home heating
chilled water cooling coil
* Usage : For boilers, outdoor installed wood furnaces, composition of stoves
* Model:16*18*3 row
* Materials as bellow:
Tube coil: 3/8” seamless copper (3row)
Plate fin: Aluminum
Core housing: Galvanized steel
Header: 1" ID Copper
* Raw material: (1)Cu tube:3/8mm", (2)Al foil thickness: 0.13-0.2mm
* Application: outdoor wood furnace parts
* Structure: (1)pull and expanded type (2)slant inserting type
* Key process :prepare the material→starving tube and shaping→inserting fins
and enlarging tube→ leakage test→keeping pressure→packing
* Performance (1)Surface treated with powder coating to prevent corrosion
(2)inner cleanness
(3) Can satisfy the cooling capability requirements of the designed refrigerator.
* Producing capability 6 million sets per year
4, Lead Time
| Quantity(Sets) | 1 - 15 | >50 |
| Est. Time(days) | 10 | To be negotiated |
