Product Details:
|
| Packing: | Best Suitable Packing Way | Size: | 1500mm*1500mm(1*2mm) |
|---|---|---|---|
| Medium: | Oil,gas,air,water | Frame Material: | Carton Steel,Stainless Steel |
| Type: | Heat Exchanger Plate,Plate | Warranty: | 1 Year |
| After-sales Service Provided: | Online Support,Video Technical Support | Application: | Refrigeration Parts,Heat Exchange |
| High Light: | refrigerator heat exchanger,fridge heat exchanger |
||
| Technical parameter | |

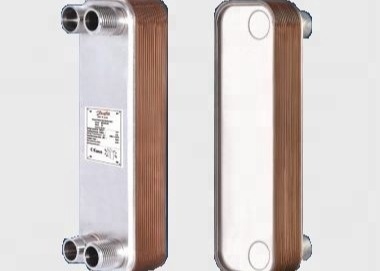

| Product name | Condenser, Evaporator, Subcooler |
| Product model | B3-52A |
| Unit heat exchanging area | 0.052m2 |
| Maximum flowrate | 12m3/h |
| Plate material | 316L or 304 stainless steel |
| Welding material | 99.9% copper |
| Thickness of plate | 0.4mm |
| Volume per channel | 0.094L |
| Maximum number of plate | 120 |
| Design pressure | 3.0MPa or 4.5MPa |
| Test pressure | 4.5MPa or 6.0MPa |
| Design temperature | -195 ~+220 |
| Connections |
the biggest screw thread pipe for water: 5/4", the biggest welded pipe for liquid: 13/8"
|
| Capacity | 10-70KW |
| Basic flow disposition | F1 -> F3 F4 -> F2 |
| Application scope | Heat pump system, household type central air conditioning, afterheatrecycling, refrigeration equipment, industry cold water machine,cooleroil and so on |
This is an extremely popular unit for wood burning furnaces, radiant floor systems, refrigerant systems, straight vegetable oil conversions, beer chilling, air conditioning system and solar water heating systems. It will work for any application in which the desired result is for two fluids (liquid or gas) to exchange heat.
A: We are factory.
A: Yes, we could offer the sample for charges, after you confirm the drawings.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
CARTON BOX, WOODEN BOX. METAL PALLET
Port:Shanghai or Ningbo
Supply ability :200000 Piece/Pieces per Year
|
Quantity(Pieces) |
1 - 150 |
>200 |
|
Est. Time(days) |
12 |
To be negotiated |
Contact Person: Aidear
Tel: +8618951221723
