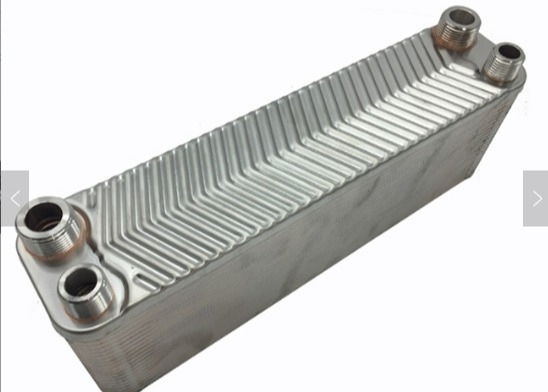

Manufacturing Plant Brazed Plate Heat Exchanger Liquid Flow Rate 12m3/H

Manufacturing Plant Brazed Plate Heat Exchanger Liquid Flow Rate 12m3/H
Manufacturing Plant Brazed Plate Heat Exchanger Liquid Flow Rate 12m3/H

Large Image :  Manufacturing Plant Brazed Plate Heat Exchanger Liquid Flow Rate 12m3/H

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CCC, CE, CSA, ROHS, UL,ISO9001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 3-15 days for 1-5 sets
Payment Terms: L/C, T/T
Supply Ability: 50 sets per day

Manufacturing Plant Brazed Plate Heat Exchanger Liquid Flow Rate 12m3/H

Description
Product Name: APV SR1 SR2 Plate Heat Exchanger With SS316 304 Plates Plate Thickness: 0.5mm To 0.7mm Available
Type: Heat Exchanger Plate,Plate Warranty: 1 Year
After-sales Service Provided: Online Support,Video Technical Support Gasket Material: NBR.HNBR EPDM HEPDM VITON
Structure: Plate&bar Color: Silver /Black
High Light:

refrigerator heat exchanger

,

fridge heat exchanger

Liquid Flow Rate 12m3/h of Brazed plate heat exchanger used in Manufacturing Plant

Specification



Technical parameter
Product name Condenser, Evaporator, Subcooler
Product model B3-52A
Unit heat exchanging area 0.052m2
Maximum flowrate 12m3/h
Plate material 316L or 304 stainless steel
Welding material 99.9% copper
Thickness of plate 0.4mm
Volume per channel 0.094L
Maximum number of plate 120
Design pressure 3.0MPa or 4.5MPa
Test pressure 4.5MPa or 6.0MPa
Design temperature -195 ~+220
Connections

the biggest screw thread pipe for water: 5/4", the biggest welded pipe for liquid: 13/8"



Capacity 10-70KW
Basic flow disposition F1 -> F3 F4 -> F2
Application scope Heat pump system, household type central air conditioning, afterheatrecycling, refrigeration equipment, industry cold water machine,cooleroil and so on





How Heat Transfer Works

Heat transfer occurs when there is a difference in temperature between two mediums. Heat will travel from the hot source to the cold source. The rate at which the heat transfer occurs at is determined by many factors such as the heat conductivity of the two materials andthe difference in temperatures of the two mediums. Convectiuve heat transfer occurs when the materials are moving against each other.

Plate heat exchangers have significantly good heat transfer rates because they use metal plates which have high heat conductivity rates and the plates are extremely thin. The plate heat exchangers also achieve high amounts of heat transfer through convective forces with both working fluids. With large temperature differentials, great amounts of heat transfer can be achieved using a plate heat exchanger.



Supply Ability:

200000 Piece/Pieces per Year



Packaging Details

CARTON BOX, WOODEN BOX. METAL PALLET



Port:Ningbo

Lead Time :

Quantity(Pieces)

1 - 100

>100

Est. Time(days)

10

To be negotiated
