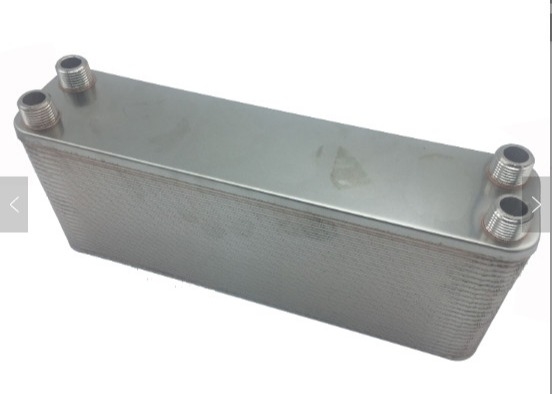

Product Details:
|
| Product Name: | APV SR1 SR2 Plate Heat Exchanger With SS316 304 Plates | Plate Thickness: | 0.5mm To 0.7mm Available |
|---|---|---|---|
| Type: | Heat Exchanger Plate,Plate | Application: | Heat Exchange |
| Warranty: | 1 Year | After-sales Service Provided: | Online Support,Video Technical Support |
| Material: | Stainless Steel 304 Or 316 | Plate Material: | Titanium,SS304,316L |
| High Light: | refrigerator heat exchanger,ac heat exchanger |
||
Liquid Flow Rate:12m3/h
Maximum Working Pressure:4.5Mpa
Warranty:1 year
Applicable Industries:
Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops
After Warranty Service:Video technical support, Spare parts
Condition:New
Place of Origin:Jiangsu, China
Brand Name:Idea
Structure:Plate Heat Exchanger
Certification:CE, ROHS, ISO9001
After-sales Service Provided:Free spare parts, Video technical support, Online support
Key Selling Points:Energy saving
Product Name:condenser heat exchanger
Plate material:SS304/SS316L
Brand:OEM
Application:Refrigeration System
Original:CHINA
Plate thickness:0.4mm
Size:523*107MM
Heat exchanger type:PLATE
Payment:TT
| Technical parameter | |
| Product name | Condenser, Evaporator, Subcooler |
| Product model | B3-52A |
| Unit heat exchanging area | 0.052m2 |
| Maximum flowrate | 12m3/h |
| Plate material | 316L or 304 stainless steel |
| Welding material | 99.9% copper |
| Thickness of plate | 0.4mm |
| Volume per channel | 0.094L |
| Maximum number of plate | 120 |
| Design pressure | 3.0MPa or 4.5MPa |
| Test pressure | 4.5MPa or 6.0MPa |
| Design temperature | -195 ~+220 |
| Connections |
the biggest screw thread pipe for water: 5/4", the biggest welded pipe for liquid: 13/8"
|
| Capacity | 10-70KW |
| Basic flow disposition | F1 -> F3 F4 -> F2 |
| Application scope | Heat pump system, household type central air conditioning, afterheatrecycling, refrigeration equipment, industry cold water machine,cooleroil and so on |
200000 Piece/Pieces per Year
CARTON BOX, WOODEN BOX. METAL PALLET
Port:Ningbo
|
Quantity(Pieces) |
1 - 100 |
>100 |
|
Est. Time(days) |
10 |
To be negotiated |
Contact Person: Aidear
Tel: +8618951221723
