Product Details:
|
| Medium: | Steam - Air | Connection Material:: | Copper |
|---|---|---|---|
| Structure: | Tube Heat Exchanger | Liquid Flow Rate: | Customized |
| Maximum Working Pressure: | Variable | Condition: | New |
| Weight: | 5-500KG Customized | Dimension(l*w*h): | Custimized Made |
| High Light: | refrigerator heat exchanger,fridge heat exchanger |
||
Liquid Flow Rate:4.5m3/h
Maximum Working Pressure:2.0Mpa
Weight:18kg, 18kg
Warranty:1 year
Applicable Industries:Hotels, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, chemical industry
Condition:New
Place of Origin:Jiangsu, China
Brand Name:Aidear /OEM
Structure:Tube Heat Exchanger
Voltage:220V/380V
Dimension(L*W*H):300mm*300mm*480mm
Certification:CE, ROHS,ISO9001
After-sales Service Provided:Video technical support, Online support
Working Temperature Range:-10°C to 50°C

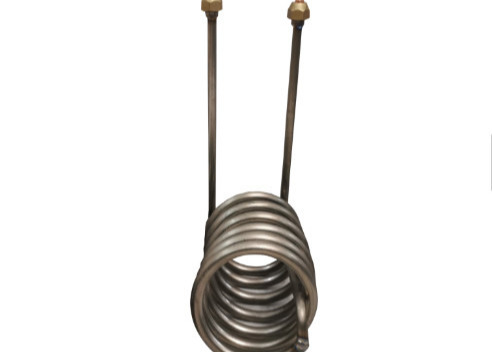

Product Name:Tube coil Heat Exchanger
Application:Refrigeration Parts
Tube material:SS304/SS316/SS316L/Carbon Steel/Cast Iron
Medium:Steam - Air
Feature:High Heat Transfer
Usage:Evaporative Air Cooling System
connection Material:Copper
Heat exchanger type:Tube Heater Exchanger
| Model | HE-CT-010CA | HE-CT-015CA | HE-CT-020CA |
| Heat exchanger power | 10HP | 15HP | 20HP |
| Cooling capacity | 35kw | 52.5KW | 70KW |
| Heating capacity | 50kw | 75KW | 100 |
| Media inlet diameter(mm) | 25 copper | 25 | 25 |
| Media outlet diameter(mm) | 32 copper | 32 | 38 |
| Tube material | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 |
| Tubediameter*thickness*length(mm) | 19*0.7*40000 | 19*0.7*60000 | 19*0.7*80000 |
| Diameter K(mm) | 300 | 350 | 400 |
| Dimension L(mm) | 250 | 300 | 350 |
| Diameter M(mm) | 200 | 250 | 300 |
| Diameter N(mm) | 150 | 200 | 250 |
| Weight (kg) | 18kg | 22kg | 28kg |
| Note:The above parameters are based on our regular products. Aidear can design heat exchangers that fully meet customer needs according to the size of the water tank, heating power, refrigeration power, connection specifications of water chillers, etc. | |||
Supply Ability:10000 Set/Sets per Month
Selling Units:Single item
Single package size: 15X43X43 cm
Single gross weight:0.621 kg
Package Type:Wooden package.
| Quantity(Units) | 1 - 3000 | >3000 |
| Est. Time(days) | 14 | Negotiable |
