Product Details:
|
| Name: | Air Cooled Chiller Coaxial Heat Exchanger | Material: | Carbon Steel And Copper |
|---|---|---|---|
| Structure: | Tube Heat Exchanger | Working Temperature Range: | -50~150℃ |
| Weight: | 20kgs | Maximum Working Pressure: | 5.2MPa |
| Dimension(L*W*H): | 664mm*245mm*222mm | Application: | Manufacturing Plant |
| High Light: | coaxial coil heat exchanger,coaxial tube heat exchanger |
||

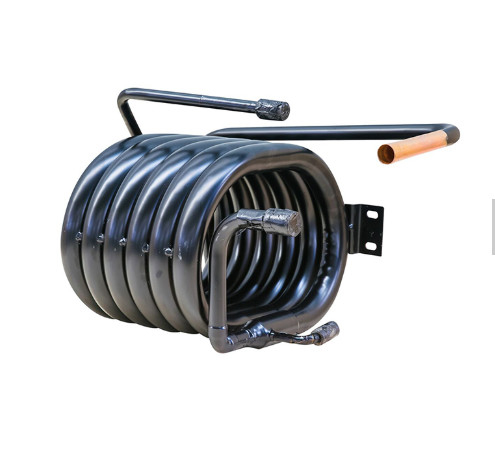

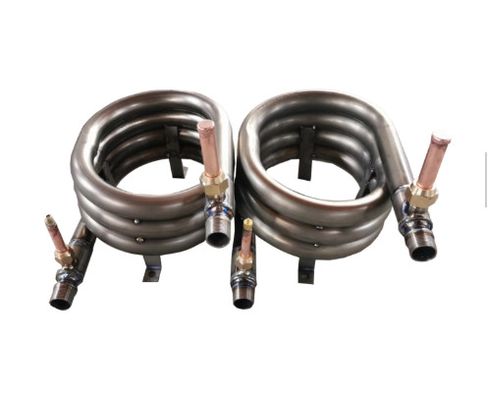

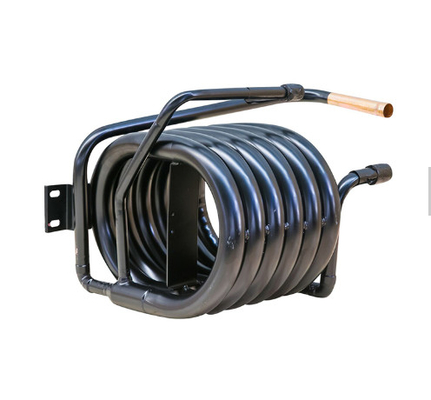

Air Cooled Chiller Coaxial Heat Exchanger -50~150℃ Working Temperature Range
| Name | Air cooled chiller coaxial heat exchanger-50-150℃ working temperature range |
| Maximum Working Pressure | Refer to details |
| Weight | 20KGS |
| Warranty | 1 Year |
| After-sales Service Provided | Field installation, commissioning and training |
| Applicable Industries | Manufacturing Plant |
| Condition | New |
| Place of Origin | Jiangsu, China (Mainland) |
| Brand Name | OEM/ODM |
| Structure | Tube Heat Exchanger |
| Voltage | 110V/220V/380V |
| Dimension(L*W*H) | 880*450*50mm |
| Material | Pure titanium tube |
| Application | Heat exchanger |
Product Description

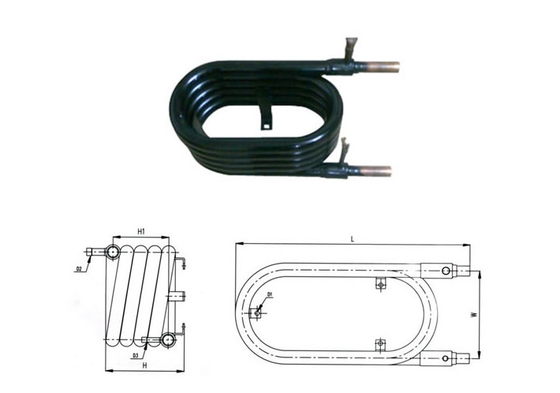

Coaxial Heat Exchanger consists of one inner twisted tube and one outer tube.Heat and cold liquid seperately flow in inner tube and between yubes for heat transferring.Its advantages:pressureproof,quakeproof,antideformed,dirtyproof,oil returning smoothly,safe and high-quality,leakproof,convenient,resonable price,well applied into teat pump system.
Coaxial heat exchanger space between the inner tube and outer tube is cut evenly,which is good to oil returning as evaporator.Due to good properties,it is widely applied into cold water units,air-cooled chiller,water-source or ground-source heat pump,heat-recovery units,heat pump for hot water,airconditioner in vessel etc.
