Product Details:
|
| Type: | Evaporator | After-sales Service Provided: | Online Support |
|---|---|---|---|
| Product Name: | Air Dryer Cooler For Refrigeration Evaporator | Warranty: | 1 Year |
| Condition: | New | Air Flow: | 1495m3/h ~ 43975m3/h |
| Voltage: | 220V/50HZ | Tube Material: | Copper Tube |
| High Light: | fridge evaporator,evaporator in refrigeration system |
||

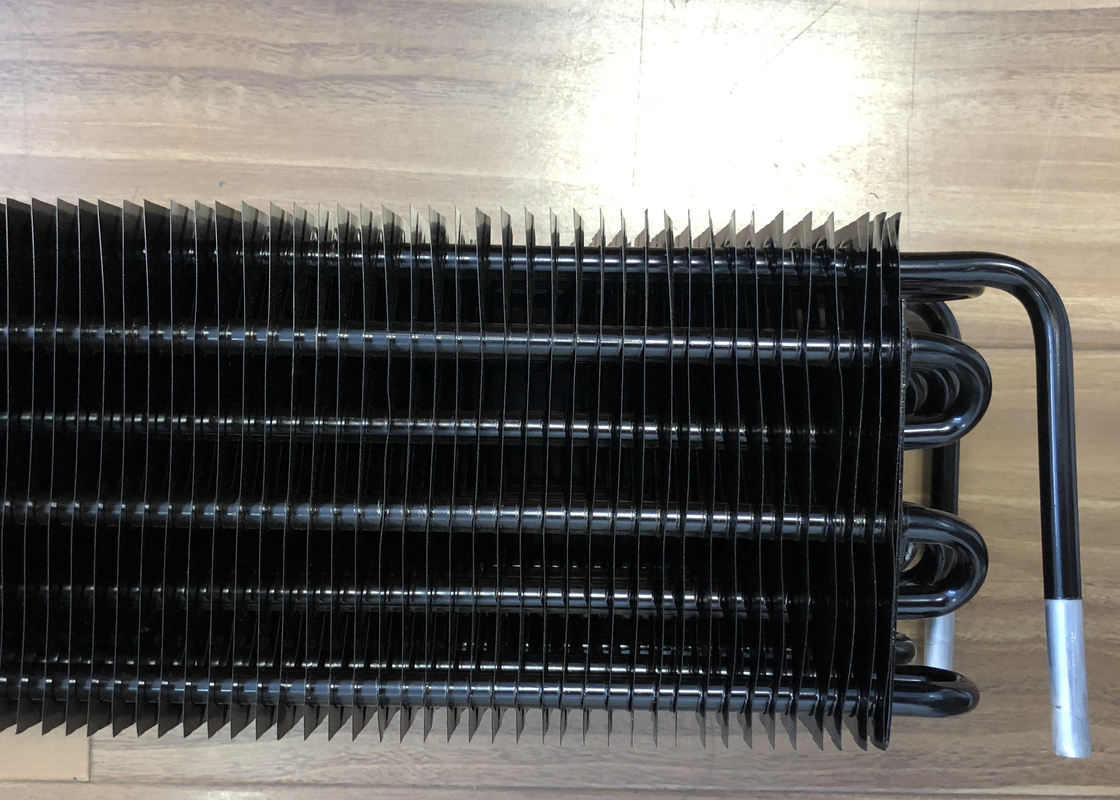

The No-Frost evaporators represents a significant advance in No-Frost technology. The unique and patented design improves thermal efficiency by up to 30% and allows designers to customize air flow patterns to optimize defrost performance. The flexibility to control fin placement makes an ideal solution for new applications that are required to meet stringent energy requirements.
Bundy Refrigeration offers traditional solid fin evaporators in a wide range of sizes. These products offer ease of installation in existing applications and are ideal for systems that direct air through the large front face of the evaporator.
Tube: Al 1070, Φ8*tmin0.6
Fins : Al 1060, t0.12～0.20
Inlet and outlet tube: copper, TP2MΦ6.0～Φ8.0*t(0.6～0.75), if lock-ring welding, it’s all Aluminum.
| Raw material | (1)Al tube:OD 8mm, wall thickness:0.6-1.0mm |
| (2)Al foil thickness: 0.13-0.2mm | |
| Application | refrigeration parts |
| Structure | (1)pull and expanded type |
| (2)slant inserting type | |
| Key process |
prepare the material→starving tube and shaping→inserting fins and enlarging tube→ leakage test→keeping pressure→packing |
| Performance | (1)Surface treated with powder coating to prevent corrosion |
| (2)Inner cleanness can meet the requirement of R134a and CFC cooling system | |
| (3) Can satisfy the cooling capability requirements of the designed refrigerator. |
We not only provide the evaporators, but also provide the evaporator assembly, which including the suction tube assembly, heater assembly, water drain assembly.
|
Quantity(Pieces) |
1 - 1000 |
>1000 |
|
Est. Time(days) |
10 |
To be negotiated |
