Product Details:
|
| Name: | Stainless Steel 304 Fin And Tube Type Heat Exchanger | Fin Material: | Stainless Steel |
|---|---|---|---|
| Tube Material: | Aluminum | Condition: | New |
| Voltage: | AC110V/AC220~24V/AC380V/DC12V/DC24V,220/380v,220V/50Hz | After-sales Service Provided: | Online Support |
| Structure: | Fin-tube Type | Weight: | 100-5000kg,50-1000kgs |
| Application: | Outdoor Wood Furnace And Other Refrigeration | ||
| High Light: | fin tube type heat exchanger,finned pipe heat exchanger |
||
Specification
| Tube Size | Fin (OD) | Fin Height | Fin Thickness | Fins Distance |
| Φ18x2 mm | Φ38 mm | 10 mm | 0.3 mm | 4-5 mm |
| Φ21x2 mm | Φ45 mm | 12 mm | 0.3 mm | 5-8 mm |
| Φ21x2 mm | Φ51 mm | 15 mm | 0.3 mm | 5-8 mm |
| Φ25x2 mm | Φ50 mm | 12.5 mm | 0.3 mm | 5-8 mm |
| Φ25x2 mm | Φ55 mm | 15 mm | 0.3 mm | 5-8 mm |
| Φ32x3 mm | Φ62 mm | 15 mm | 0.3 mm | 8-10 mm |
|
Other finned tube size can be customized. (Materials S/S 201, S/S 304, S/S 316 are optional) |
||||

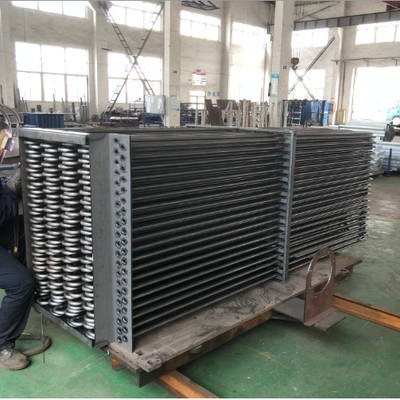

There are 2 kinds of the SS tube & fin heat exchangers, which are SS tube & Al fin type and SS tube & SS fin full SS type.
The products are applied for commercial A/C, industrial refrigeration, Gas cooler, Energy Recovery system, pollution gas recovery system, industrial dryer, many other kinds of the refrigeration systems.
The hairpin tube can be “U” bended and straight, end to be connected by return bender.
The tube expanding and tube welding technology of SS heat exchanger are specialized, SS tube welding by orbital machinery. all the connect point welded smooth, full and nice appearance.
Application

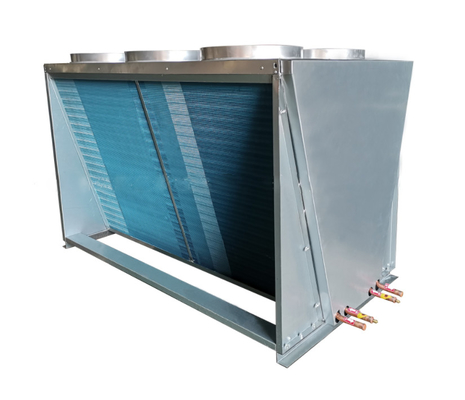

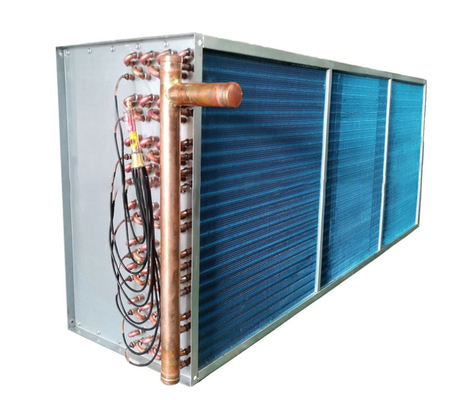

a. Refrigeration: as condenser and evaporator.
b. HVAC: intermediate heat exchangers for boilers, intermediate heat exchangers for high-rise buildings, etc.
c. Chemical industry: soda ash industry, ammonia synthesis, alcohol fermentation, resin synthesis cooling, etc.
d. Metallurgical industry: aluminate mother liquor heating or cooling, steel making process cooling, etc.
e. Machinery industry: cooling of various quenching fluids, cooling of lubricants for reducers, etc.
f. Electric power industry: high-voltage transformer oil cooling, generator bearing oil cooling, etc.
g. Paper industry: bleaching process heat recovery, heating pulp washing liquid, etc.
