Product Details:
|

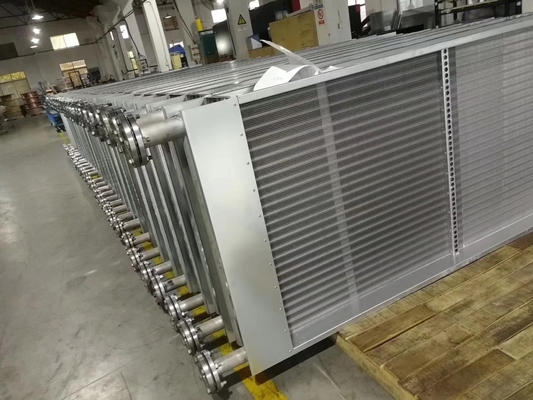

| Name: | Industrial Fin Tube Type Heat Exchanger For Condenser | Fin Shape: | Windowed, Flat, Corrugated |
|---|---|---|---|
| Voltage: | AC110V/AC220~24V/AC380V/DC12V/DC24V,220/380v,220V/50Hz | Condition: | New |
| Structure: | Fin-tube Type | Fin Material: | 1.4-12mm |
| Weight: | 100-5000kg,50-1000kgs | Application: | Cooling |
| High Light: | flat tube heat exchanger,finned pipe heat exchanger |
||
Specification
| Finned tube type | Diameter (mm) | Fin specific | ||
| Tube | Finned O.D | W*t | F.P | |
| Steel-steel SRZ | Φ21*2.0 | Φ41 | 10*0.4 | 5.0/6.0/8.0 |
| Steel-steel GLII | Φ21*2.0 | Φ41 | 10*0.3 | 5.0/6.0/8.0 |
| SS-AL BGL | Φ21*2.0 | Φ41 | 10*0.3 | 3.2/5.0/6.0 |
| SS-SS | Φ21*2.0 | Φ41 | 10*0.3 | 3.2/5.0/6.0 |
| Φ21*2.0 | Φ51 | 15*0.3 | 3.2/5.0/6.0 | |
| Φ25*2.0 | Φ45 | 10*0.3 | 3.2/5.0/6.0 | |
| Φ25*2.0 | Φ55 | 15*0.3 | 3.2/5.0/6.0 | |
| Copper-Al | Φ16*1.0 | Φ36 | 10*0.2 | 3.2/4.2/5.0/6.5 |
Advantages
High heat transfer efficiency especially in gas treatment
Larger heat transfer area
Approximately 5 times lighter in weight than that of shell and tube heat exchanger.
Able to withstand high pressure
