Stainless Steel Fin Type Heat Exchanger Easy Installation For Wood Drying

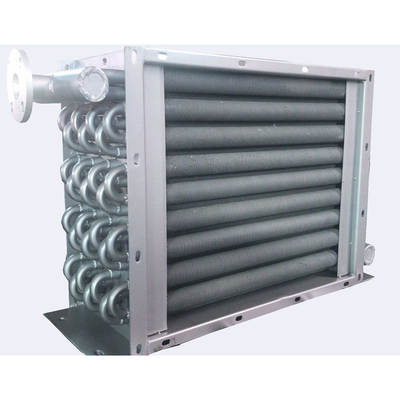

Large Image : Stainless Steel Fin Type Heat Exchanger Easy Installation For Wood Drying

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM/ODM
Certification:	CE,ROHS ,ISO9001,ISO14001,
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	PE bags + small box + wooden carton or accept custom-made
Delivery Time:	10-20days
Payment Terms:	L/C, T/T
Supply Ability:	7500 pcs per month

Contact Now

Stainless Steel Fin Type Heat Exchanger Easy Installation For Wood Drying

Description

Name:	Stainless Steel Fin Type Heat Exchanger Easy Installation For Wood Drying	Type:	Fin Tube,Heat Exchanger Tube
Fin Material:	Stainless Steel	Tube Material:	Stainless Steel
Power:	120kw	Weight:	90kgs
Voltage:	380V/60hz	Application:	Heater Parts,Refrigeration Parts,Heat Exchange,Evaporator,Fluid Cooler Etc.
High Light:	aluminum fin heat exchanger , finned heat exchanger

Stainless Steel Fin Type Heat Exchanger Easy Installation For Wood Drying

Specification

Finned tube type	Diameter (mm)		Fin specific
	Tube	Finned O.D	W*t	F.P
Steel-steel SRZ	Φ21*2.0	Φ41	10*0.4	5.0/6.0/8.0
Steel-steel GLII	Φ21*2.0	Φ41	10*0.3	5.0/6.0/8.0
SS-AL BGL	Φ21*2.0	Φ41	10*0.3	3.2/5.0/6.0
SS-SS	Φ21*2.0	Φ41	10*0.3	3.2/5.0/6.0
	Φ21*2.0	Φ51	15*0.3	3.2/5.0/6.0
	Φ25*2.0	Φ45	10*0.3	3.2/5.0/6.0
	Φ25*2.0	Φ55	15*0.3	3.2/5.0/6.0
Copper-Al	Φ16*1.0	Φ36	10*0.2	3.2/4.2/5.0/6.5

TUBES

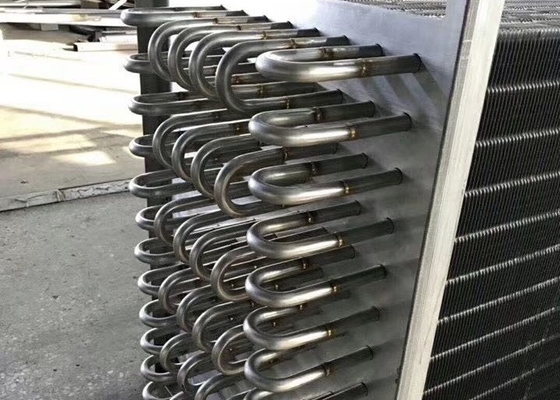

We make tubes of different diameters, with a greater number of thicknesses and different materials such as copper, stainless steel and cupronickel. The tube expansion, during the flaring phase, allows a perfect contact between the tubes and the fins and as a consequence it assures efficient thermal exchange.

Product application industries

Special air radiators for drying and cooling of beer malt
Special air heat exchangers for tobacco yarn making and puffing drying
Wood drying kiln special heat exchanger
Heaters for drying dyestuff, chemical fiber, soda ash, latex, PVC and gelatin
Drying equipment for dairy products and milk powder spray
Radiators for drying vegetable dehydration tunnels and ovens

Tag:

finned heat exchanger,

aluminum fin heat exchanger,

freezer heat exchanger

Contact Details

Changzhou Aidear Refrigeration Technology Co., Ltd.

Contact Person: Aidear

Tel: +8618951221723
