Product Details:
|
Name: | 380V / 220V Resistance Welding Machine For Copper / Aluminum Joint Pipe | Usage: | Welding Machine |
---|---|---|---|
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Free Spare Parts | Dimensions: | 900mmX1150mmX1750mm |
Voltage: | 380V,220V | Rated Capacity: | 4/6/10KW |
Machine Type: | High Quality Resistance Spot Welding Machine Price | Weight: | 900kgs |
Application: | Dynamic Resistance | ||
High Light: | resistance spot welding machine,resistance welding equipment |

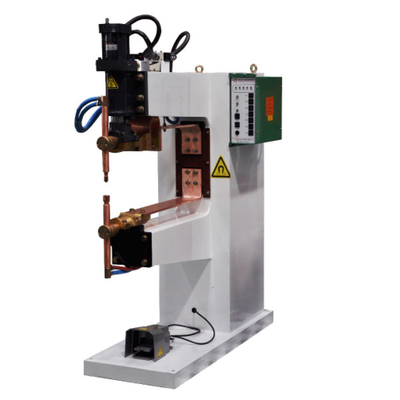

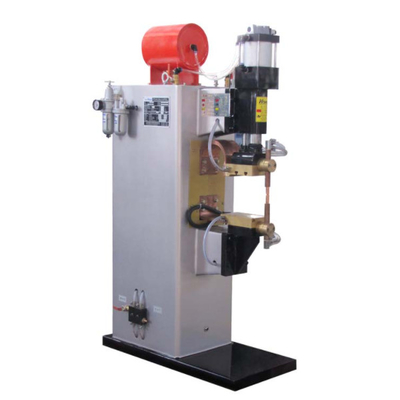

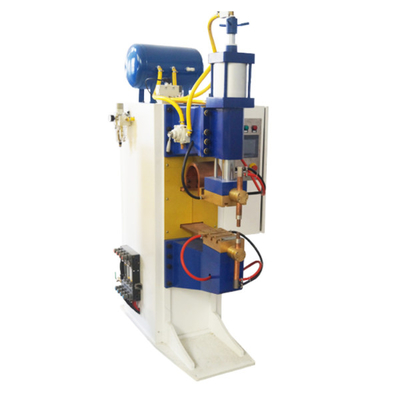

Refrigerator condenser evaporator copper and aluminum tube pipe resistance welding machine.
The insert type copper-aluminum tube resistance welding machine is designed for copper head connection to aluminum condenser and evaporator. With adjustable welding parameter setting for different tube size, the resistance welding machine is easier to operate with stable performance, and the welding quality will be ensured to pass the pressure testing.
Refrigerator condenser evaporator copper and aluminum tube pipe resistance welding machine.
NO.
|
Item
|
Data
|
|
1
|
Applied material
|
Copper and aluminum tube
|
|
2
|
Tube thickness
|
0.5-1.5mm
|
|
3
|
Welding speed
|
5-7 s/piece
|
|
4
|
Working pressure
|
0.5-0.6Mpa
|
|
5
|
Output voltage
|
1-8 adjustable
|
|
6
|
Input voltage
|
380-450 V, 50 Hz, 3 phase
|
|
7
|
Control system
|
PLC + touch screen
|
|
Model
|
Diameter range of tube
|
||
TL(K)-25KVA
|
4-8mm
|
||
TL(K)-50KVA
|
6-10mm
|
||
TL(K)-75KVA
|
6-16mm
|
||
TL(K)-100KVA
|
10-20mm
|
Quantity(Sets) |
1 - 1 | >1 |
Est. Time(days) | 30 | To be negotiated |
