Strong Anti-scaling Ability Coaxial Heat Exchanger Applied to Air/water Source Heat Pump

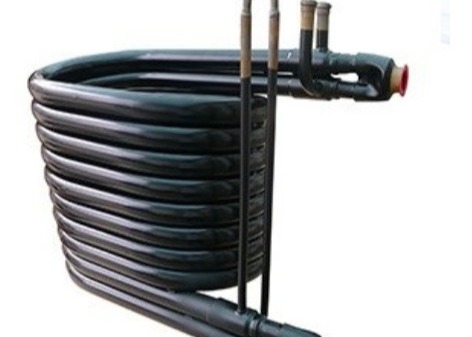

Large Image : Strong Anti-scaling Ability Coaxial Heat Exchanger Applied to Air/water Source Heat Pump

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM/ODM
Certification:	CE,ROHS ,ISO9001
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	wooden packing
Delivery Time:	3-15 days for 1-5 sets
Payment Terms:	L/C, T/T
Supply Ability:	50000 pcs per month

Contact Now

Strong Anti-scaling Ability Coaxial Heat Exchanger Applied to Air/water Source Heat Pump

Description

Features:	Strong Stress Compensation Ability	Name:	Strong Anti-scaling Ability Coaxial Heat Exchanger
Material:	Titanium/Steel/Copper	Heating Capacity:	5KW
Water Flow:	0.6-4.5(m3/h)	Weight:	1-100kgs
Working Temperature Range:	-30-100°C	Application:	Air/water Source Heat Pump, Water Cooler Compressor Unit Etc
Highlight:	heat pump heat exchanger , coaxial coil heat exchanger

Strong Anti-scaling Ability Coaxial Heat Exchanger Applied to Air/water Source Heat Pump

Specification

Model	Heating Capacity(KW)	Cooling Capacity(KW)	Water Flow(m3/h)	Water Resistance
ADTZ-1.0	3.5	3.0	0.6	<40
ADTZ-2.0	7.5	6.5	1.3	<55
ADTZ-3.0	9.9	8.5	1.7	<60
ADTZ-4.0	13.6	11.8	2.4	<40
ADTZ-5.0	17.5	15	3.0	<45
ADTZ-6.0	20.8	18	3.6	<55
ADTZ-7.5	26	22.5	4.5	<40

Product Introduction

Coaxial Heat Exchanger consists of one inner twisted tube and one outer tube.Heat and cold liquid seperately flow in inner tube and between yubes for heat transferring.Its advantages:pressureproof,quakeproof,antideformed,dirtyproof,oil returning smoothly,safe and high-quality,leakproof,convenient,resonable price,well applied into teat pump system. The space between the inner tube and outer tube is cut evenly,which is good to oil returning as evaporator.Due to good properties,it is widely applied into cold water units,air-cooled chiller,water-source or ground-source heat pump,heat-recovery units,heat pump for hot water,airconditioner in vessel etc.

Tube in tube(Coaxial) heat exchanger

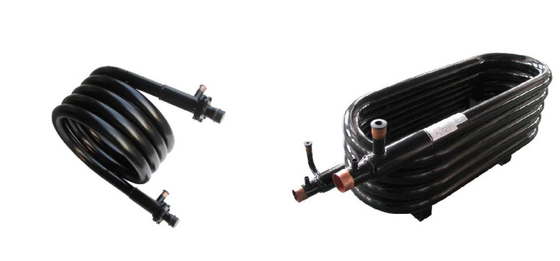

Strong Anti-scaling Ability Coaxial Heat Exchanger Applied to Air/water Source Heat Pump 2

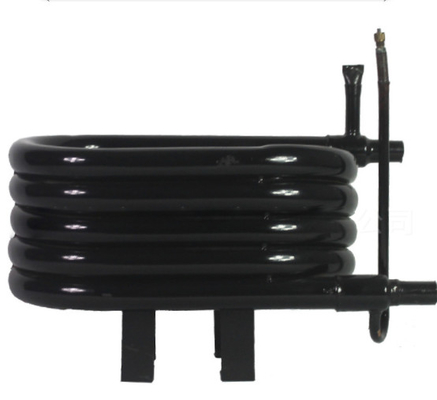

Strong Anti-scaling Ability Coaxial Heat Exchanger Applied to Air/water Source Heat Pump 3
