Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line

Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line
Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line

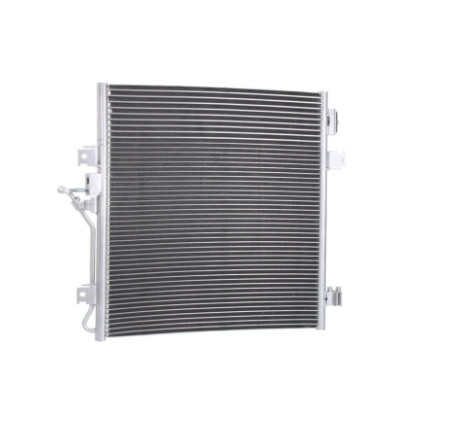

Large Image :  Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001,ISO14001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 20-25days
Payment Terms: T/T, L/C
Supply Ability: 2000 units per month

Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line

Description
Name: Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line Tube Type: Flat Type
Fin Material: Aluminum/Brazed/Copper/Titanium/Gasket Liquid Flow Rate: Max 50 M3/h
Thickness: Reach To 12, 16, 20, 25.4, 32, 36mm Outer Dimension Limit: Max. 4000*4000*1000mm L*W*H
Weight: 40kgs Application: Heat Pump
High Light:

Brazed microchannel condenser

,

Heat pump microchannel condenser

,

Brazed microchannel coil

Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line

Specification

Product name Heat pump brazed microchannel condenser coil for refrigeration line
Fin material Aluminum/Brazed/Copper/Titanium/Gasket
Fins type Plain,serrate,louver,perforated and corrugated forms are typical
Voltage AC220v/380v/customized ,50Hz/60Hz
Packaging Pallet ,export wooden case or customized required
Warranty 1 Year
Delivery time air delivery 7-10days,sea delivery 20-30days
Payment Terms T/T, L/C
Certification CE,ROHS ,ISO9001,ISO14001
Application

Air-conditioner products,Water chiller system,Fridge, freezer products,Cold storage buliding system,Multiple cooling system,Ice making machine,



Detailed image​





Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line 0

Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line 1

Heat Pump Brazed Microchannel Condenser Coil For Refrigeration Line 2

Machining methods



With the advent of micromachining technology, highly efficient micro heat exchangers with flow path depths ranging from a few microns to several hundred microns can be produced. Such micromachining techniques include lithography, chemical etching, photolithography-injection molding (LIGA), diamond cutting, wire cutting and ion beam processing. Sintered mesh porous micro heat exchangers are fabricated using powder metallurgy. The processing of microchannels at large scales is significantly different to that of microchannels at microscale, with the former requiring more efficient processing and manufacturing techniques.
