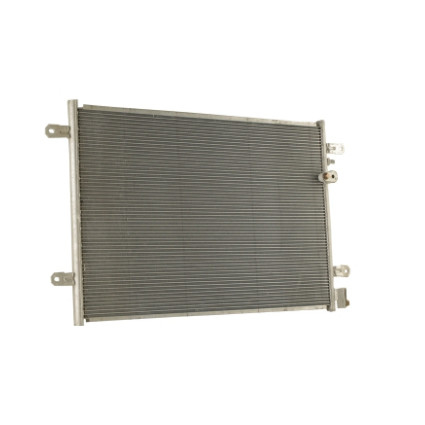

R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly

Certification
China Changzhou Aidear Refrigeration Technology Co., Ltd. certification
China Changzhou Aidear Refrigeration Technology Co., Ltd. certification
Customer Reviews
i know Michael for almost 10 years from we met each other on the project of moving the production of heat exchanger of AC from Europe to China .I get many professional suggestions and help from him . So that make us get a big achievements on that project .So we make business cooperation till now from he founded Aidear company by his own .

—— Vittorio

I'm Online Chat Now

R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly

R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly
R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly

Large Image :  R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001,ISO14001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 20-25days
Payment Terms: T/T, L/C
Supply Ability: 2000 units per month

R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly

Description
Name: R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly Liquid Flow Rate: Max 50 M3/h
Tube Type: Flat Type Voltage: AC220v/380v/customized ,50Hz/60Hz
Thickness: Reach To 12, 16, 20, 25.4, 32, 36mm Outer Dimension Limit: Max. 4000*4000*1000mm L*W*H
Weight: 60kgs Application: Heat Pump
High Light:

energy saving Microchannel Heat Exchanger

,

compact Microchannel Heat Exchanger

,

R32 flat plate heat exchanger

R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly

Specification



Product name R32 compact energy saving microchannel heat exchanger eco friendly
Fin material Aluminum/Brazed/Copper/Titanium/Gasket
Fins type Plain,serrate,louver,perforated and corrugated forms are typical
Voltage AC220v/380v/customized ,50Hz/60Hz
Packaging Pallet ,export wooden case or customized required
Warranty 1 Year
Delivery time air delivery 7-10days,sea delivery 20-30days
Payment Terms T/T, L/C
Certification CE,ROHS ,ISO9001,ISO14001
Application

Air-conditioner products,Water chiller system,Fridge, freezer products,Cold storage buliding system,Multiple cooling system,Ice making machine,





Detailed image







R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly 0

R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly 1

R32 Compact Energy Saving Microchannel Heat Exchanger Eco Friendly 2



Application advantages



1.Energy saving. Energy efficiency is an important indicator for today's air conditioners. It is difficult to manufacture conventional heat exchangers with a high level of energy efficiency such as Class I. Microchannel heat exchangers are the best choice to solve this problem.



2.Outstanding heat transfer performance. In home air conditioning, when the size of the flow channel is less than 3mm, gas-liquid two-phase flow and phase change heat transfer law will be different from the conventional larger size, the smaller the channel, the more obvious this size effect. When the inner diameter of the tube is as small as 0.5 to 1mm, the convective heat transfer coefficient can be increased by 50% to 100%. This enhanced heat transfer technology for air conditioning heat exchanger, appropriate changes to the heat exchanger structure, process and air side of the enhanced heat transfer measures, is expected to effectively enhance the heat transfer of air conditioning heat exchanger, improve its energy-saving level.



3.Promotion potential. Microchannel heat exchanger technology in the field of air conditioning manufacturing has the potential to be promoted to air energy water heaters, which can greatly enhance the competitiveness of products and the sustainable development of enterprises.
