5.5KW Wire Diameter PE Foam Roll Rotary Tube Straightener

5.5KW Wire Diameter PE Foam Roll Rotary Tube Straightener
5.5KW Wire Diameter PE Foam Roll Rotary Tube Straightener 5.5KW Wire Diameter PE Foam Roll Rotary Tube Straightener 5.5KW Wire Diameter PE Foam Roll Rotary Tube Straightener 5.5KW Wire Diameter PE Foam Roll Rotary Tube Straightener

Large Image :  5.5KW Wire Diameter PE Foam Roll Rotary Tube Straightener

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001,ISO14001,
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 20-25days
Payment Terms: L/C, T/T
Supply Ability: 1 sets per days

5.5KW Wire Diameter PE Foam Roll Rotary Tube Straightener

Description
Name: 5.5KW Wire Diameter PE Foam Roll Tube Straightening Machine Type: Straightener & Cutter
Material: Stainless Steel,304 Stainless Steel And Carbon Steel Paper Core Size: 1-3"
Wire Diameter: 0.45-2.6mm Max. Cutting Diameter: 350mm
Weight: 2000kgs Application: Machinery & Hardware
High Light:

PE Foam rotary tube straightener

,

Bundy tube rotary straightener

,

5.5KW rotary tube straightener

5.5KW Wire Diameter PE Foam Roll Tube Straightening Machine

Specification



Input Voltage 440V, 2-phase 50Hz
Applicable Tube Bundy tube
Working Air Pressure 0.6-0.8Mpa
Tube Coil Specification 4.76mm
Tube Wall Thickness 0.4~1.5mm
Making Length 50mm~3860mm
Output Power 1.12KW
Control System Full Automatic
Max Material Feeding Speed 60m/min
Precision ≤1000mm±0.5mm;≤3000mm±1mm;
≤5000mm±1.5mm
Machine Dimension 2000x500x1500(mm)
Weight 1000kgs





Company information



Changzhou Aidear Refrigeration Technology Co.,ltd.Based on Honesty,Responsible,Technology and continuous Innovation.We are professional refrigeration system solutions provider. Main products are tube&fin heat exchangers,Microchannel heat exchanger,air cooler,condenser and units,raw materials and the components for heat exchangers,automatic machines for heat exchangers,and the complete solutions for customer. Welcome to contact us if you are intrested to our products or any question.

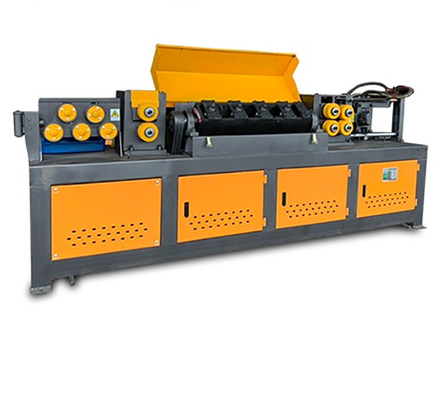

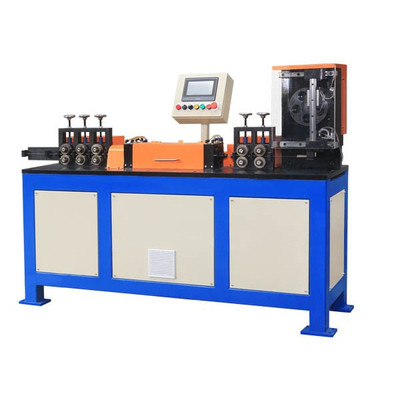

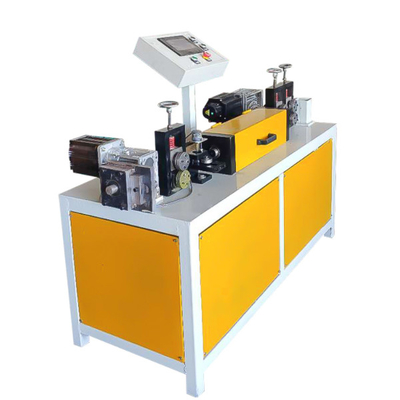

Detailed image





5.5KW Wire Diameter PE Foam Roll Rotary Tube Straightener 0

5.5KW Wire Diameter PE Foam Roll Rotary Tube Straightener 1

5.5KW Wire Diameter PE Foam Roll Rotary Tube Straightener 2



Features



1.Servo CNC, accurate locating, stable feeding.

2.High degree of automation, convenient adjustment.

3.With snapping function, little shrinking of pipe end.



Applicable



Widely used in sheet metal processing, advertising signage word making, high and low voltage electrical cabinet making, mechanical parts, kitchenware, automotive, machinery, metal crafts, saw blades, electrical parts, eyeglass industry, spring pieces, circuit boards, electric kettles, medical microelectronics, hardware, knife and measuring tools and other industries.
