Product Details:
|
| Name: | 205 Deg Stainless Steel Mechanical Tube Shrinking Machine For Tube Pier Processing | Type: | Tube Swaging & Shrinking Machine |
|---|---|---|---|
| Tube Material: | Copper / Aluminum / Bundy Tube | Power: | 5kw |
| Core Components: | Bearing, Motor, Pump, Pressure Vessel, Engine | Voltage: | 380V/480V 50/60HZ |
| Weight (KG): | 3000 | Max Pack Size: | 600(L)x400(W)x350(H)mm |
| High Light: | stainless steel mechanical pipe bender,205 Deg mechanical pipe bender,205 Deg Tube Shrinking Machine |
||
Specification
| Main Specifications | 50 Type | 76 Type | 114 Type |
| Mold Size(W*L*H) | 50*300*75 | 60*400*60 | 85*500*90 |
| Processing Range (mm) | 16 - 51 | 19 - 76 | 38 - 114 |
| Processing Thickness (mm) | 0.2 - 1.2 | 0.4 - 1.5 | 0.7 - 2.0 |
| Forming Length (mm) | 290 | 290 | 290 |
| Main Motor(KW) | 4 | 7.5 | 11 |
| Height of Spindle Center | 800 | 800 | 900 |
| Total Weight (KG) | 2000 | 3000 | 5000 |

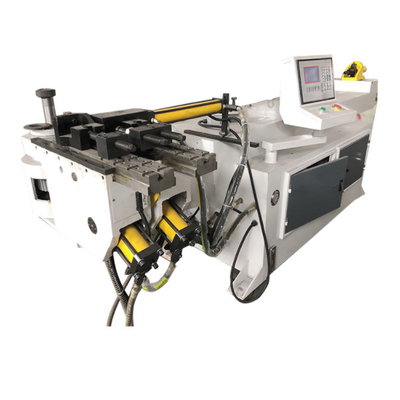

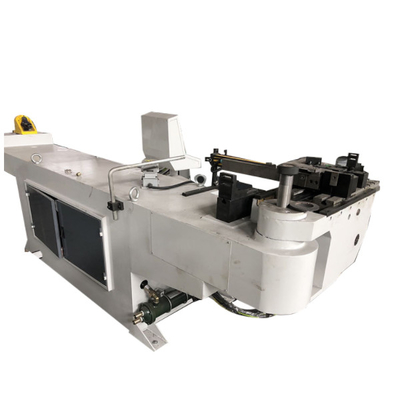

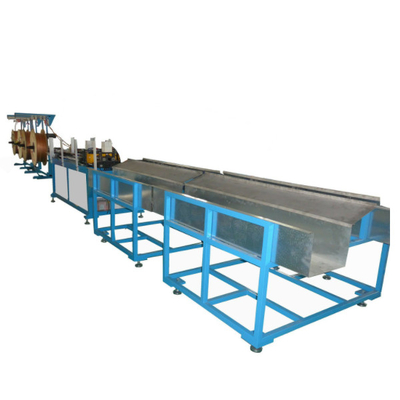

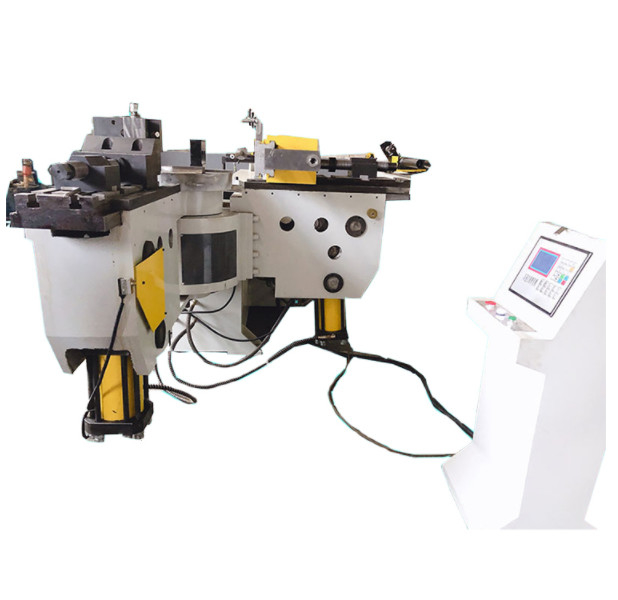

Detailed image
