Product Details:
|
| Name: | Epoxy Coating 8.6m/S SS Tube Fin Type Heat Exchanger Cooling Fan Coil | Type: | Fin Tube,Heat Exchanger Tube,Heating Tube,ammonia Evaporator Unit Refrigeration |
|---|---|---|---|
| Liquid Flow Rate: | 8.6m/s | Fin Material: | Copper /SS/Al |
| Voltage: | 50/60HZ,220V/380V | Burst Pressure: | ≥10Mpa |
| Weight: | 100kgs | Application: | Machinery & Hardware |
| High Light: | SS tube cooling fan coil,8.6m/s tube cooling fan coil,SS tube fan cooling unit |
||
| Product name | Epoxy Coating 8.6m/S SS Tube Fin Type Heat Exchanger Cooling Fan Coil |
| Application | showcase,water cooler,cold storage,outdoor wood furnace and other refrigeration euqipment |
| Power | 1/5HP, 1/4HP, 1/3HP, 3/8HP, 1/2HP, 3/4HP, 1HP, 1.5HP, 2HP,3HP, 4HP…20HP |
| Materials | Copper tube aluminum fin, galvanized plate |
| Tube O.D. | 7mm. 7.94mm, 9.52mm, 12.75mm, 15.88mm |
| Aluminum fin | Hydroponic fin or bare fin,Copper fin |
| Fin type | Flat fin, Window fin, louver fin, Smooth sine wave fin |
| Fin space | 1.3-10mm |
| Fan Cover | With cover or without cover,with fan motor or without fan motor |
| Application refrigerant | R417A/R407C/R404A//R410A/R134A, ect. |
| Feature | Epoxy coating, electrophoresis,sandblasting Leaking checking 100% |

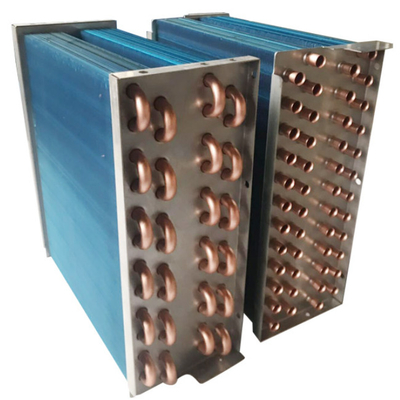

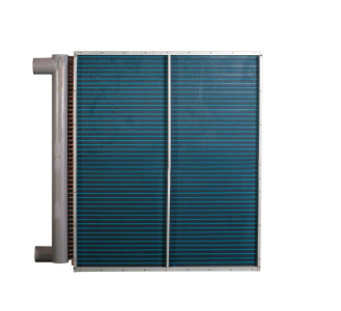

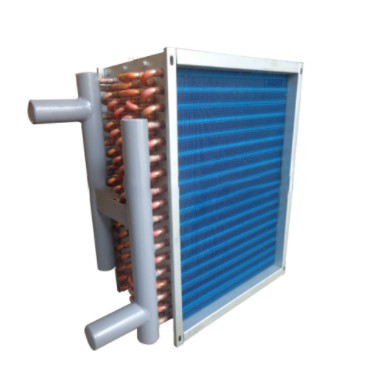

Detailed image
Product introduction
Finned tube heat exchanger is applied and equipped with fins on one side to increase the heat transfer area, improve the degree of turbulence in the fluid and the convection heat transfer coefficient when two fluid convection heat transfer coefficient has large difference.
Tube Fin Heat Exchangers, also called finned coil heat exchangers, consist of tubes that pass through a dense fin stack that is mechanically supported by a mounting frame. Fluid passes through the tube coils, conducts heat to the fins and dissipates heat to air forced through the heat exchanger.
Air heat exchangers as finned tube heat exchangers Heat transfer between a gaseous media and a liquid
Finned tube heat exchangers are often called air/water heat exchangers or gas/water heat exchangers. Heat transfer between a gas (for ex. air) and a liquid (for ex. water) takes place in the air-/water heat exchangers. To improve the thermal output transfer from the gas to the liquid, fins made of well heat transferring materials are put on the tubes.
Very often air-/water heat exchangers are used as exhaust heat exchanger to gain the energy out of warm or hot exhaust fumes. Finned tube heat exchangers can also be used as air heater, air cooler or condenser.
