Product Details:
|
| Name: | 40MPA Φ5 Tube Expanding Machine Double Position | Type: | Automatic Electric |
|---|---|---|---|
| Keyword: | Aluminum Honeycomb Core Machine | Material: | Stainless Steel |
| Color: | Standard Konform Green Color Or According To Customer's Requirement,Customized | Power: | 50HZ Or Customized |
| Voltage: | 380V Or As Required | Weight: | 3600kgs |
| Application: | Air Conditioner | ||
| High Light: | Φ5 tube expanding machine,3 axis tube expanding machine,Φ5 pipe expanding machine |
||

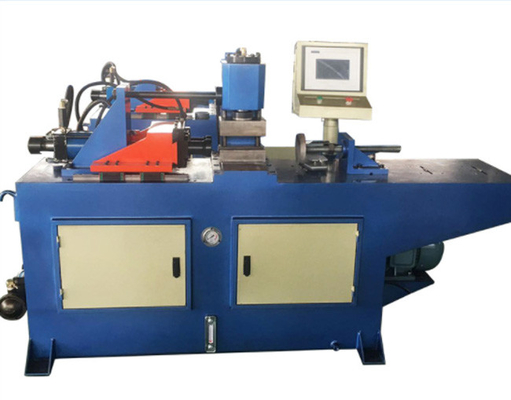

40MPA Φ5 Tube Expanding Machine Double Position
Company information
Changzhou Aidear Refrigeration Technology Co.,ltd.Based on Honesty,Responsible,Technology and continuous Innovation.We are professional refrigeration system solutions provider. Main products are tube&fin heat exchangers,Microchannel heat exchanger,air cooler,condenser and units,raw materials and the components for heat exchangers,automatic machines for heat exchangers,and the complete solutions for customer. Welcome to contact us if you are intrested to our products or any question.
| Item | Specifications and requirements |
| Copper pipe size (diameter. Wall thickness) | Φ5~Φ3/8" |
| Hole distance *row spacing *row number per row number | |
| Workpiece length | MC22EM01 : 200~800 |
| MC22EM02 : 200~1200 | |
| MC22EM03 : 200~1600 | |
| MC22EM04 : 200~2000 | |
| MC22EM05 : 200~2500 | |
| Way of working | Single position/ double position/ flip door |
| Equipment color | Standard color for international gray / Customized request |
| Equipment requirements: brass, soft state | |
| MC22EM01 and MC22EM02 with diameter 5 or aluminum tube expansion, expansion pipe length reduced 150mm. | |
