Product Details:
|
| Name: | Air Cooled Steam Heat Exchanger Condenser Titanium Perforated | Type: | Microchannel Heat Exchanger |
|---|---|---|---|
| Fin Material: | Aluminum/Brazed/Copper/Titanium/Gasket | Outer Dimension Limit: | Max. 4000*4000*1000mm L*W*H |
| Thickness: | 25mm | Outlet Tube Diameter: | 6.35mm |
| Weight: | 80kgs | Application: | Heat Transfer Cooling And Heating |
| High Light: | perforated heat exchanger condenser,perforated heat exchanger condenser,Titanium air cooled steam condenser |
||
Specification
| Product name | Air Cooled Steam Heat Exchanger Condenser Titanium Perforated |
| Fin material | Aluminum/Brazed/Copper/Titanium/Gasket |
| Fins type | Plain,serrate,louver,perforated and corrugated forms are typical |
| Voltage | AC220v/380v/customized ,50Hz/60Hz |
| Packaging | Pallet ,export wooden case or customized required |
| Warranty | 1 Year |
| Delivery time | air delivery 7-10days,sea delivery 20-30days |
| Payment Terms | T/T, L/C |
| Certification | CE,ROHS ,ISO9001,ISO14001 |
| Application |
Air-conditioner products,Water chiller system,Fridge, freezer products,Cold storage buliding system,Multiple cooling system,Ice making machine,
|

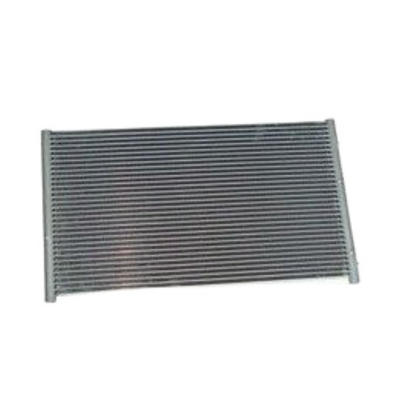

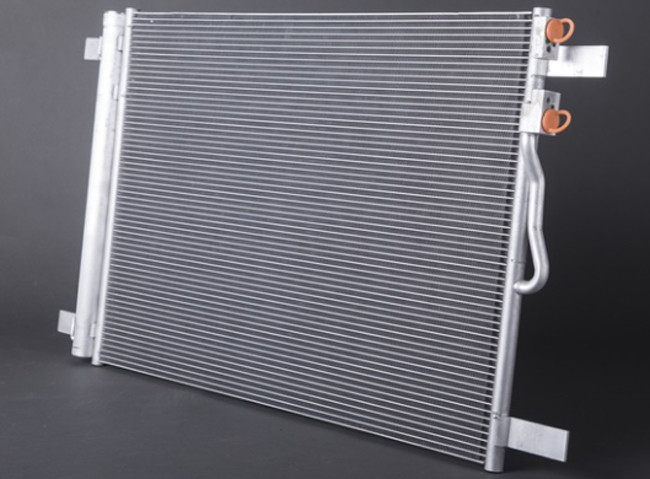

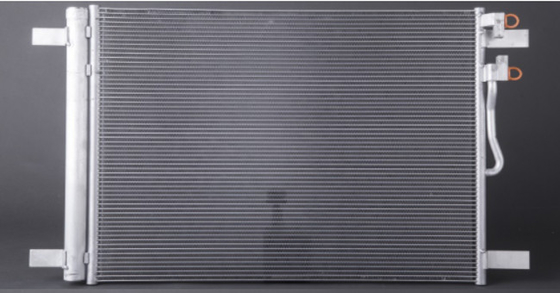

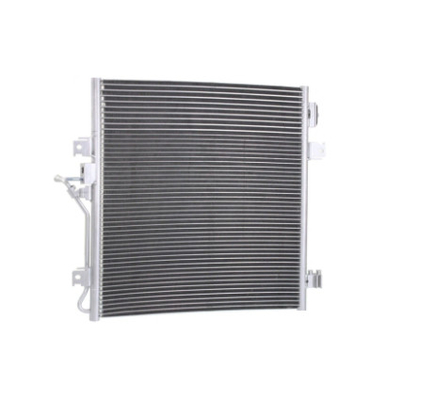

Detailed image
Machining methods
With the advent of micromachining technology, highly efficient micro heat exchangers with flow path depths ranging from a few microns to several hundred microns can be produced. Such micromachining techniques include lithography, chemical etching, photolithography-injection molding (LIGA), diamond cutting, wire cutting and ion beam processing. Sintered mesh porous micro heat exchangers are fabricated using powder metallurgy. The processing of microchannels at large scales is significantly different to that of microchannels at microscale, with the former requiring more efficient processing and manufacturing techniques.
